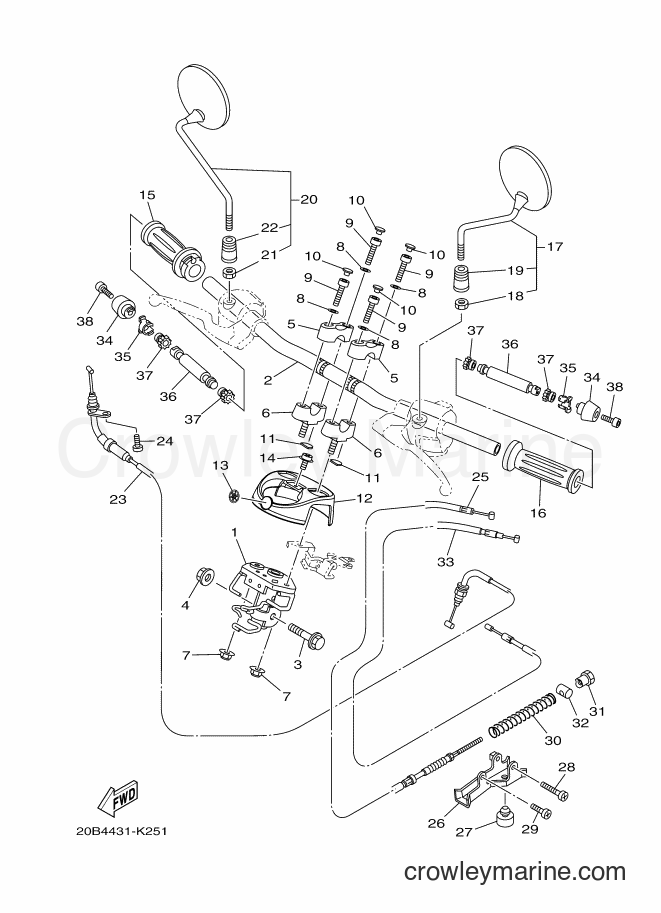

2012 Scooter AF115S - AF115S (20B9) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AF115S (20B9) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/he0e0zru.png)
1
Required: 1
BRACKET, HANDLE
Price unavailable
2
Required: 1
BAR, HANDLE
Price unavailable
$8.07
You save $1.42
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 2
HOLDER, HANDLE UPPER
Price unavailable
6
Required: 2
HOLDER, HANDLE LOWER
Price unavailable
7
Required: 2
NUT, SELF-LOCKING
Price unavailable
8
Yamaha Motors
Plain Washer90201-08823-00
Required: 4
WASHER, PLATE
$1.10
You save $0.20
$8.07
You save $1.42
$3.19
You save $0.56
11
Required: 2
DAMPER
Price unavailable
12
Required: 1
COVER,HAND,.UPPER 1(CR)
Price unavailable
12
Required: 1
COVER,HAND,.UPPER 1(1124,WM6)
Price unavailable
13
Required: 1
EMBLEM
Price unavailable
14
Yamaha Motors
Screw With Washer90159-05032-00
Required: 1
SCREW, WITH WASHER
$0.17
You save $0.03
15
Required: 1
GRIP ASSY (BROWN)
Price unavailable
15
Required: 1
GRIP ASSY (GRAY)
Price unavailable
15
Required: 1
GRIP ASSY (BLACK)
Price unavailable
16
Required: 1
GRIP (BLACK)
Price unavailable
16
Required: 1
GRIP (GRAY)
Price unavailable
16
Required: 1
GRIP (BROWN)
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
19
Required: 1
. BOOT 1
Price unavailable
20
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
21
Required: 1
. NUT
Price unavailable
22
Required: 1
. BOOT 1
Price unavailable
23
Required: 1
CABLE, THROTTLE 1
Price unavailable
24
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
25
Required: 1
CABLE, BRAKE
Price unavailable
26
Required: 1
HOLDER, WIRE
Price unavailable
27
Required: 1
STOPPER
Price unavailable
28
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
$2.74
You save $0.48
29
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 1
SCREW, PAN HEAD
In stock
Only 1 remaining
$8.07
You save $1.42
30
Required: 1
SPRING, COMPRESSION
Price unavailable
$8.07
You save $1.42
In stock
Only 4 remaining
$8.07
You save $1.42
33
Required: 1
CABLE, STARTER 1
Price unavailable
34
Required: 2
END, GRIP (1217,BMH)
Price unavailable
34
Required: 2
END, GRIP (CR)
Price unavailable
34
Required: 2
END, GRIP (1307,LLGM6)
Price unavailable
35
Required: 2
STOPPER
Price unavailable
36
Required: 2
WEIGHT
Price unavailable
37
Yamaha Motors
Locating Damper 15YP-F622F-00-00
Required: 4
DAMPER, LOCATING 1
$2.00
You save $0.35
$3.23
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
