2012 Scooter AF115S - AF115S (20B7) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

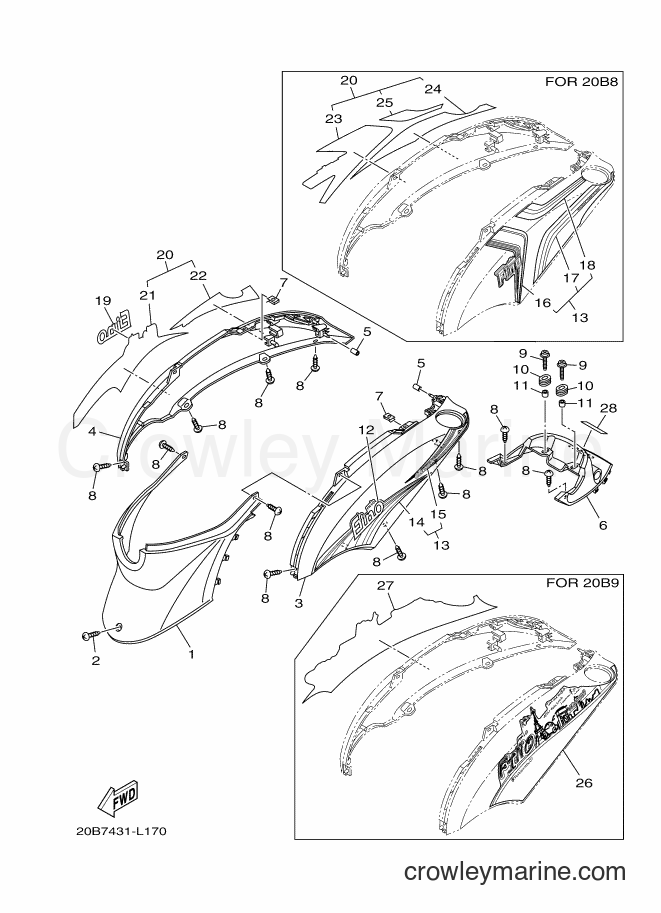

Yamaha Motors AF115S (20B7) [010] - SIDE COVER
Change View:
1
Required: 1
COVER (1307,LLGM6)
Price unavailable
1
Required: 1
COVER (008L,NG)
Price unavailable
1
Required: 1
COVER (1217,BMH)
Price unavailable
3
Required: 1
COVER, SIDE 1 (0903,SMX)
Price unavailable
3
Required: 1
COVER, SIDE 1 (1124,WM6)
Price unavailable
4
Required: 1
COVER, SIDE 2 (0903,SMX)
Price unavailable
4
Required: 1
COVER, SIDE 2 (1124,WM6)
Price unavailable
5
Required: 2
HOSE
Price unavailable
6
Required: 1
COVER, SIDE 3 (1307,LLGM6)
Price unavailable
6
Required: 1
COVER, SIDE 3 (1217,BMH)
Price unavailable
6
Required: 1
COVER, SIDE 3 (008L,NG)
Price unavailable
Screw with Washer
9
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 2
GROMMET
Price unavailable
11
Required: 2
COLLAR
Price unavailable
12
Required: 1
EMBLEM 3D
Price unavailable
13
Required: 1
GRAPHIC SET, SIDE COVER 1
Price unavailable
13
Required: 1
GRAPHIC SET, SIDE COVER 1
Price unavailable
14
Required: 1
. GRAPHIC 13
Price unavailable
15
Required: 1
. GRAPHIC 15
Price unavailable
16
Required: 1
. GRAPHIC 17
Price unavailable
17
Required: 1
. GRAPHIC 19
Price unavailable
18
Required: 1
. GRAPHIC 21
Price unavailable
19
Required: 1
EMBLEM 3D
Price unavailable
20
Required: 1
GRAPHIC SET, SIDE COVER 2
Price unavailable
20
Required: 1
GRAPHIC SET, SIDE COVER 2
Price unavailable
21
Required: 1
. GRAPHIC 14
Price unavailable
22
Required: 1
. GRAPHIC 16
Price unavailable
23
Required: 1
. GRAPHIC 18
Price unavailable
24
Required: 1
. GRAPHIC 20
Price unavailable
25
Required: 1
. GRAPHIC 22
Price unavailable
26
Required: 1
GRAPHIC 23
Price unavailable
27
Required: 1
GRAPHIC 24
Price unavailable
28
Required: 1
EMBLEM, YAMAHA
Price unavailable
28
Required: 1
EMBLEM, YAMAHA
Price unavailable
28
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
