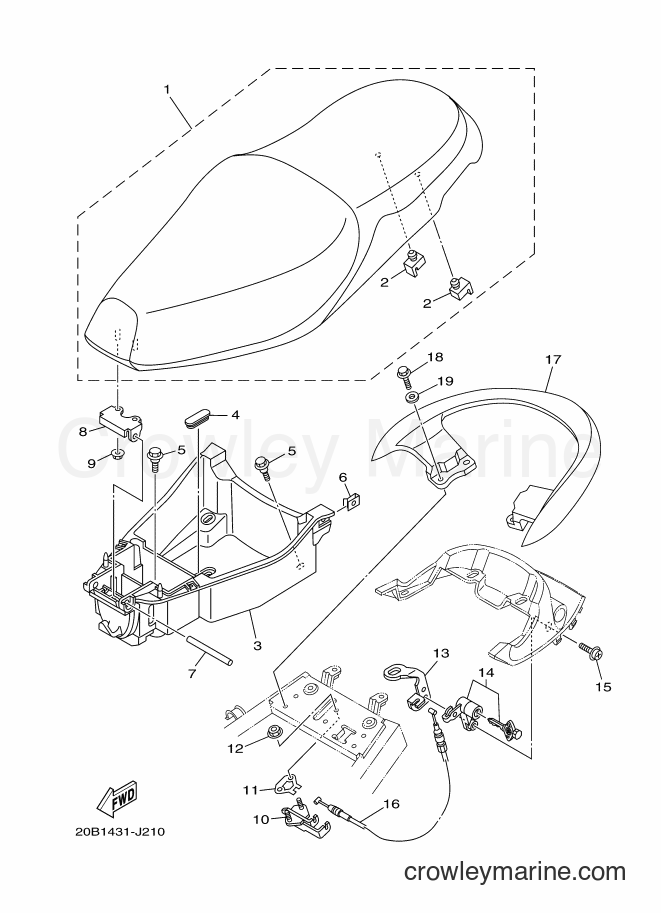

2012 Scooter AF115S - AF115S (20B7) [010] SEAT diagram
![Yamaha Motors AF115S (20B7) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/3UGRJtjo.png)
1
Required: 1
DOUBLE SEAT ASSY (BLACK/BEIGE)
Price unavailable
1
Required: 1
DOUBLE SEAT ASSY (BLACK/GRAY)
Price unavailable
1
Required: 1
DOUBLE SEAT ASSY (BLACK/SL)
Price unavailable
2
Required: 2
PAD, SEAT
Price unavailable
3
Required: 1
BOX 1
Price unavailable
4
Required: 1
PLUG, BLIND
Price unavailable
$2.63
You save $0.47
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
7
Required: 1
PIN, SEAT FITTING
Price unavailable
8
Required: 1
HINGE, SEAT
Price unavailable
$0.85
You save $0.15
10
Required: 1
SEAT LOCK ASSY
Price unavailable
11
Required: 1
PLATE
Price unavailable
$0.85
You save $0.15
13
Required: 1
STAY, LOCK
Price unavailable
14
Required: 1
ROTOR ASSY
Price unavailable
15
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
16
Required: 1
CABLE, SEAT LOCK
Price unavailable
17
Required: 1
HANDLE, SEAT (1124,WM6)
Price unavailable
17
Required: 1
HANDLE, SEAT (0903,SMX)
Price unavailable
In stock
Only 2 remaining
$2.98
You save $0.52
19
Yamaha Motors
Plate Washer90201-06045-00
Required: 4
WASHER, PLATE
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
