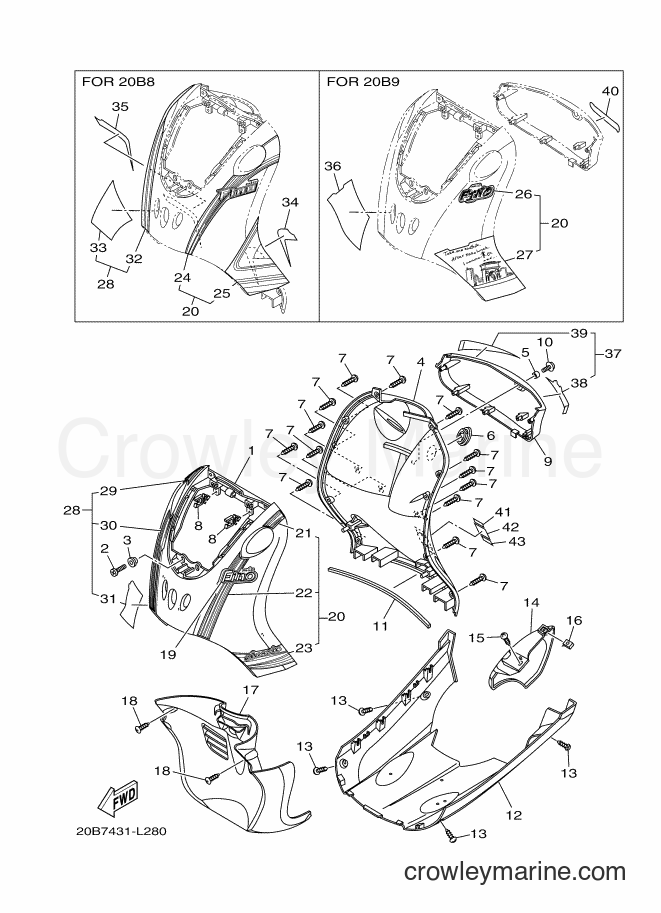

2012 Scooter AF115S - AF115S (20B8) [010] LEG SHIELD diagram
![Yamaha Motors AF115S (20B8) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/tDeX9CL9.png)
1
Required: 1
LEG SHIELD 1 (0903,SMX)
Price unavailable
1
Required: 1
LEG SHIELD 1 (1307/0903)
Price unavailable
1
Required: 1
LEG SHIELD 1 (1124/1217)
Price unavailable
$8.92
You save $1.57
3
Required: 2
COLLAR
Price unavailable
4
Required: 1
LEG SHIELD 2 (008L,NG)
Price unavailable
4
Required: 1
LEG SHIELD 2 (1307,LLGM6)
Price unavailable
4
Required: 1
LEG SHIELD 2 (1217,BMH)
Price unavailable
5
Required: 1
COLLAR
Price unavailable
6
Required: 1
CAP
Price unavailable
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 14
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Required: 2
CLAMP
Price unavailable
9
Required: 1
PANEL, INNER 1 (1124,WM6)
Price unavailable
9
Required: 1
PANEL, INNER 1 (0903,SMX)
Price unavailable
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
11
Required: 1
DAMPER 1
Price unavailable
12
Required: 1
COVER, UNDER (003E,PGD)
Price unavailable
12
Required: 1
COVER, UNDER (0033,YB)
Price unavailable
12
Required: 1
COVER, UNDER (000A,SFS)
Price unavailable
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Required: 1
COVER, UNDER 2
Price unavailable
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
17
Required: 1
FENDER, INNER (0033,YB)
Price unavailable
17
Required: 1
FENDER, INNER (000A,SFS)
Price unavailable
17
Required: 1
FENDER, INNER (003E,PGD)
Price unavailable
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Required: 1
EMBLEM 3D
Price unavailable
20
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
20
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
20
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
21
Required: 1
. GRAPHIC 19
Price unavailable
22
Required: 1
. GRAPHIC 21
Price unavailable
23
Required: 1
. GRAPHIC 23
Price unavailable
24
Required: 1
. GRAPHIC 27
Price unavailable
25
Required: 1
. GRAPHIC 29
Price unavailable
26
Required: 1
. GRAPHIC 33
Price unavailable
27
Required: 1
. GRAPHIC 34
Price unavailable
28
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
28
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
29
Required: 1
. GRAPHIC 20
Price unavailable
30
Required: 1
. GRAPHIC 22
Price unavailable
31
Required: 1
. GRAPHIC 24
Price unavailable
32
Required: 1
. GRAPHIC 28
Price unavailable
33
Required: 1
. GRAPHIC 30
Price unavailable
34
Required: 1
GRAPHIC 31
Price unavailable
35
Required: 1
GRAPHIC 32
Price unavailable
36
Required: 1
GRAPHIC 35
Price unavailable
37
Required: 1
GRAPHIC SET, PANEL INNER 1
Price unavailable
38
Required: 1
. GRAPHIC 25
Price unavailable
39
Required: 1
. GRAPHIC 26
Price unavailable
40
Required: 1
GRAPHIC 36
Price unavailable
41
Required: 1
LABEL, WARNING
Price unavailable
42
Required: 1
LABEL, CAUTION
Price unavailable
43
Required: 1
LABEL, SAFETY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
