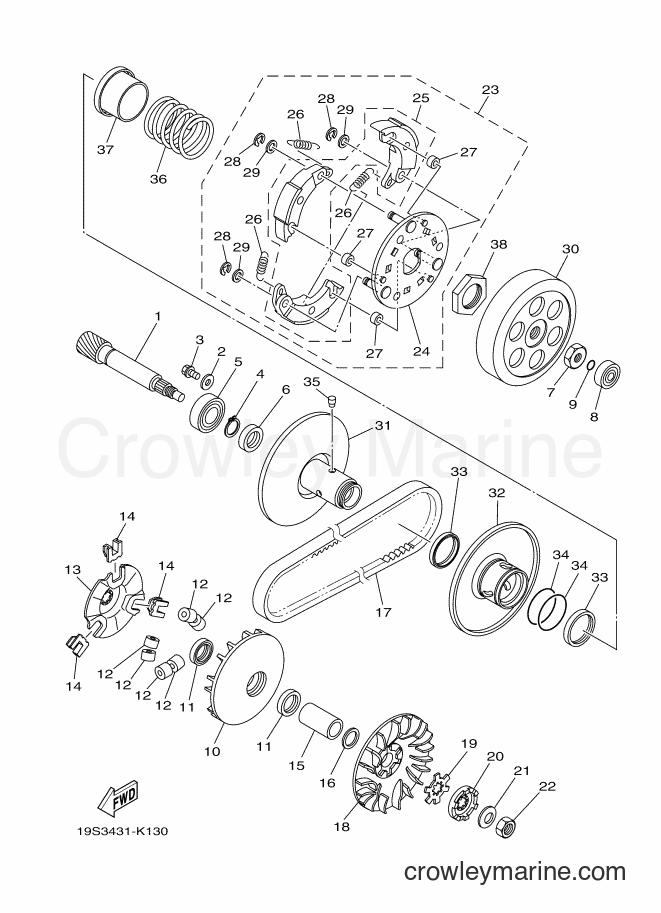

2012 Scooter AF115S - AF115S (20B7) [010] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20B7) [010] - CLUTCH
Change View:
1
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
3
Required: 1
BOLT, FLANGE
Price unavailable
Circle Clip
4
Yamaha Motors
Circle Clip99009-17400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
5
Required: 1
BEARING
Price unavailable
6
Required: 1
OIL SEAL
Price unavailable
Hexagon Nut
7
Yamaha Motors
Hexagon Nut90170-10317-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
8
Required: 1
BEARING
Price unavailable
9
Required: 1
O-RING
Price unavailable
10
Required: 1
PRIMARY SLIDING SHEAVE COMP.
Price unavailable
11
Required: 2
OIL SEAL
Price unavailable
12
Required: 6
WEIGHT (10.5G)
Price unavailable
13
Required: 1
CAM
Price unavailable
14
Required: 3
SLIDER
Price unavailable
15
Required: 1
COLLAR
Price unavailable
16
Required: 1
WASHER, PLATE
Price unavailable
17
Required: 1
V-BELT
Price unavailable
18
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
19
Required: 1
WASHER, CLAW
Price unavailable
20
Required: 1
CLUTCH, ONEWAY
Price unavailable
Conical Spring Washer
21
Yamaha Motors
Conical Spring Washer90208-12050-00
Required: 1
WASHER, CONICAL SPRING
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Nut
22
Yamaha Motors
Nut95317-12700-00
Required: 1
NUT
Supersedes: 95307-12700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
CLUTCH CARRIER ASSY
Price unavailable
24
Required: 1
. CARRIRE COMP.
Price unavailable
25
Required: 1
. SHOE, CLUTCH WEIGHT (PACK 3 PCS)
Price unavailable
26
Required: 3
. SPRING, CLUTCH WEIGHT 1
Price unavailable
27
Required: 3
. DAMPER, CLUTCH WEIGHT
Price unavailable
28
Required: 3
. CIRCLIP
Price unavailable
29
Required: 3
. WASHER
Price unavailable
30
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
31
Required: 1
SECONDARY FIXED SHEAVE COMP.
Price unavailable
32
Required: 1
SECONDARY SLIDING SHEAVE
Price unavailable
33
Required: 2
OIL SEAL
Price unavailable
O-Ring
34
Yamaha Motors
O-Ring5TL-E7465-10-00
Required: 2
O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
35
Required: 3
PIN, GUIDE
Price unavailable
36
Required: 1
SPRING, SECONDARY
Price unavailable
37
Required: 1
SEAT, SECONDARY SPRING
Price unavailable
38
Required: 1
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
