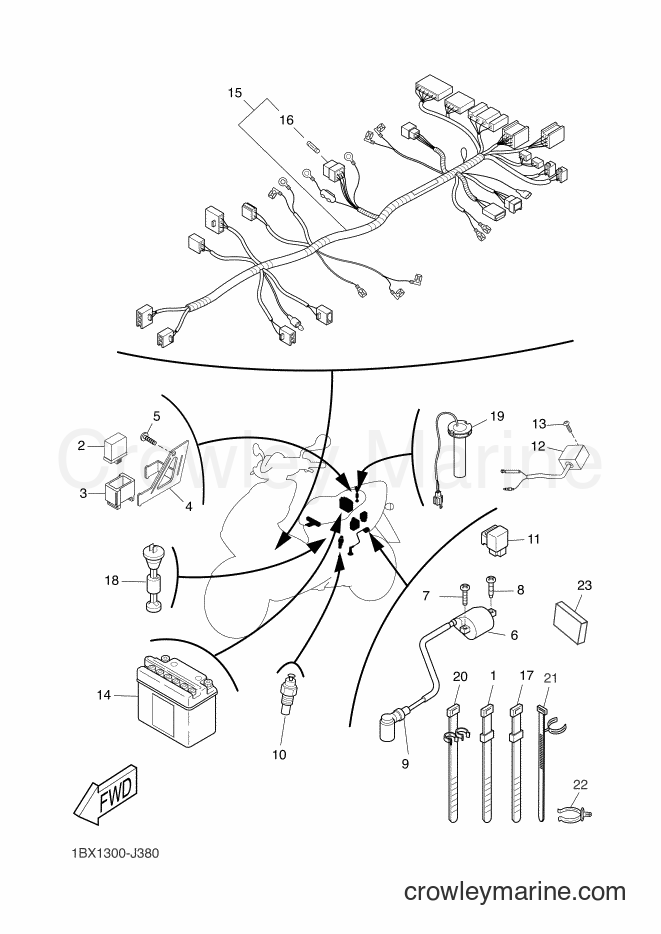

2011 Scooter YQ50 - YQ50 (1BX3) [100] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50 (1BX3) [100] - ELECTRICAL 2
Change View:
Switch Cord Band
1
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
2
Required: 1
C.D.I. UNIT ASSY
Price unavailable
3
Required: 1
BAND
Price unavailable
4
Required: 1
STAY UNIT
Price unavailable
Binding Screw
5
Yamaha Motors
Binding Screw90154-06X01-00
Required: 1
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
6
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Screw
7
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
BOLT, FLANGE
Price unavailable
9
Required: 1
PLUG CAP ASSY
Price unavailable
9
Required: 1
PLUG CAP ASSY
Price unavailable
10
Required: 1
SENDER, WATER
Price unavailable
29U-81950-93-00
11
Yamaha Motors
29U-81950-93-0027V-81940-02-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
12
Required: 1
UNIT, CONTROL
Price unavailable
13
Required: 1
SCREW, BINDING
Price unavailable
BATTERY FOR MERC 200 AND SNOWMOBILE 150E
14
Yamaha Motors
BATTERY FOR MERC 200 AND SNOWMOBILE 150E4CU-H2110-20-00
Required: 1
BATTERY ASSY
Cross Ship
Leaves in 2-5 days
$66.99
$56.94
You save $10.05
More details
YB4LB YUASA BATTERY
14
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY (12V 4AH YB4L-B)
Supersedes: 4SB-H2110-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
14
Required: 1
BATTERY ASSY
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 1
. FUSE (7.5A)
Price unavailable
Switch Cord Band
17
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 6
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Oil Level Gauge Assembly
18
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
19
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
20
Required: 1
CLAMP, WIRE HARNESS 1
Price unavailable
21
Required: 2
CLAMP
Price unavailable
22
Required: 1
CLAMP, CABLE
Price unavailable
23
Required: 2
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
