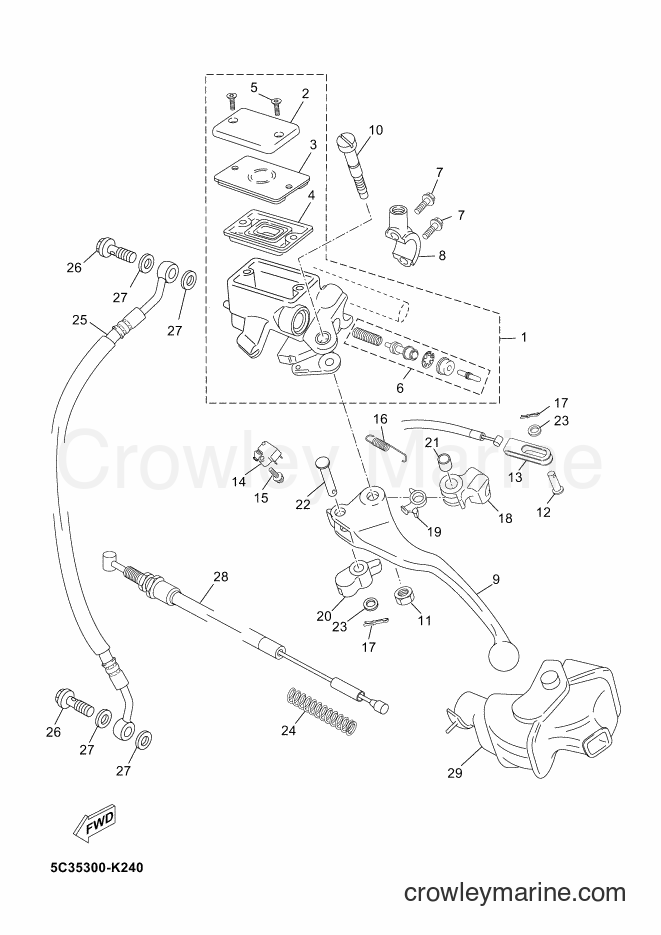

2011 Scooter YN50F - YN50F (5C35) [060] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50F (5C35) [060] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER SUB ASSY 2
Price unavailable
2
Required: 1
. CAP, RESERVOIR
Price unavailable
3
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
4
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
5
Required: 2
. SCREW
Price unavailable
6
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
8
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
9
Required: 1
LEVER 1
Price unavailable
10
Required: 1
BOLT, LEVER
Price unavailable
11
Required: 1
NUT, COVER
Price unavailable
Pin Clevis
12
Yamaha Motors
Pin Clevis90240-06M18-00
Required: 1
PIN, CLEVIS
Cross Ship
Leaves in 2-5 days
$5.65
$4.80
You save $0.85
More details
13
Required: 1
JOINT, CABLE
Price unavailable
J45-82503-01-00
14
Yamaha Motors
J45-82503-01-0036Y-83980-01-00
Required: 1
FRONT STOP SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
Pan Head Screw With Washer
15
Yamaha Motors
Pan Head Screw With Washer97602-04214-00
Required: 1
SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
16
Required: 1
SPRING
Price unavailable
18
Required: 1
KNOCKER
Price unavailable
19
Required: 1
STOPPER, LEVER
Price unavailable
20
Required: 1
EQUALIZER, BRAKE
Price unavailable
21
Required: 1
COLLAR, LEVER 1
Price unavailable
CLEVIS PIN
22
Yamaha Motors
CLEVIS PIN91702-06028-00
Required: 1
PIN, CLEVIS
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
23
Yamaha Motors
Plain Washer90201-061H1-00
Required: 2
WASHER, PLATE (T=0.5)
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details
24
Required: 1
SPRING, COMPRESSION
Price unavailable
25
Required: 1
HOSE, BRAKE 1
Price unavailable
26
Required: 2
BOLT, OIL 1
Price unavailable
Plate Washer
27
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
28
Required: 1
WIRE, BRAKE 1
Price unavailable
29
Required: 1
COVER MASTER CYLINDER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
