All diagrams for this model

2011 Scooter YN50F - YN50F (5C35) [080] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

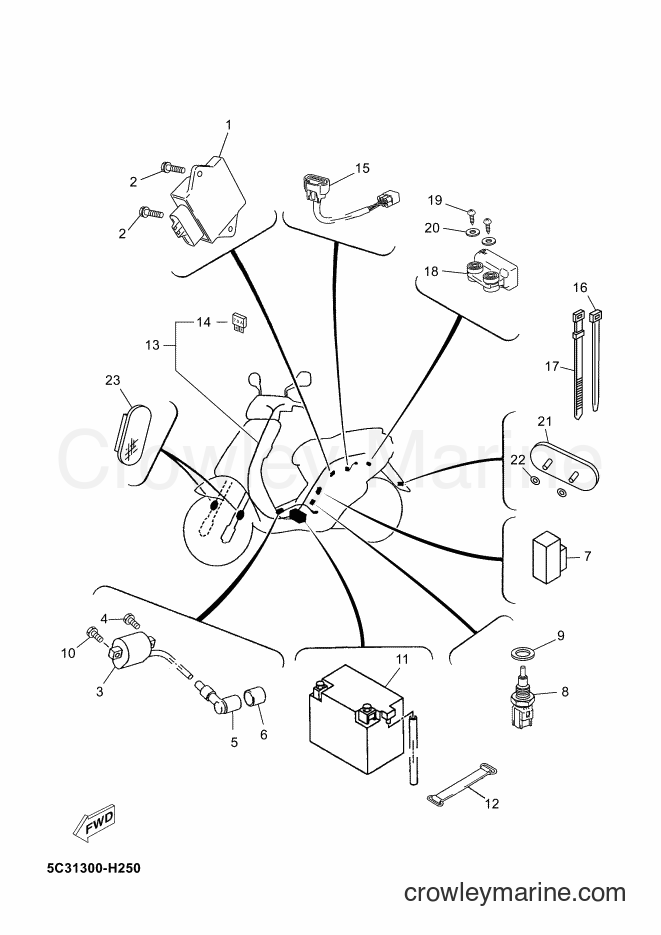

Yamaha Motors YN50F (5C35) [080] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 2
BOLT, WITH WASHER
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
BOLT
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
SEAL, PLUG CAP
Price unavailable
7
Required: 1
STARTER RELAY ASSY
Price unavailable
Thermosensor Assembly
8
Yamaha Motors
Thermosensor Assembly5YP-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
Plate Washer
9
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Hexagon Screw
10
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 1
BATTERY ASSY
Price unavailable
12
Required: 1
BAND, BATTERY
Price unavailable
13
Required: 1
WIRE HARNESS ASSY
Price unavailable
13
Required: 1
WIRE HARNESS ASSY
Price unavailable
14
Required: 2
. FUSE (30A)
Price unavailable
15
Required: 1
WIRE, SUB LEAD
Price unavailable
16
Required: 3
CLAMP
Price unavailable
17
Required: 4
CLAMP
Price unavailable
SENSOR, LEAN ANGLE
18
Yamaha Motors
SENSOR, LEAN ANGLE5PS-82576-02-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 5PS-82576-01-00
Cross Ship
Leaves in 2-5 days
$96.99
$82.44
You save $14.55
More details
19
Required: 2
SCREW, TAPPING
Price unavailable
Plate Washer
20
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
21
Required: 1
REAR REFLECTOR ASSY
Price unavailable
22
Required: 2
NUT, SPRING
Price unavailable
23
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
