2011 Scooter YN50 - YN50 (5C2J) [060] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

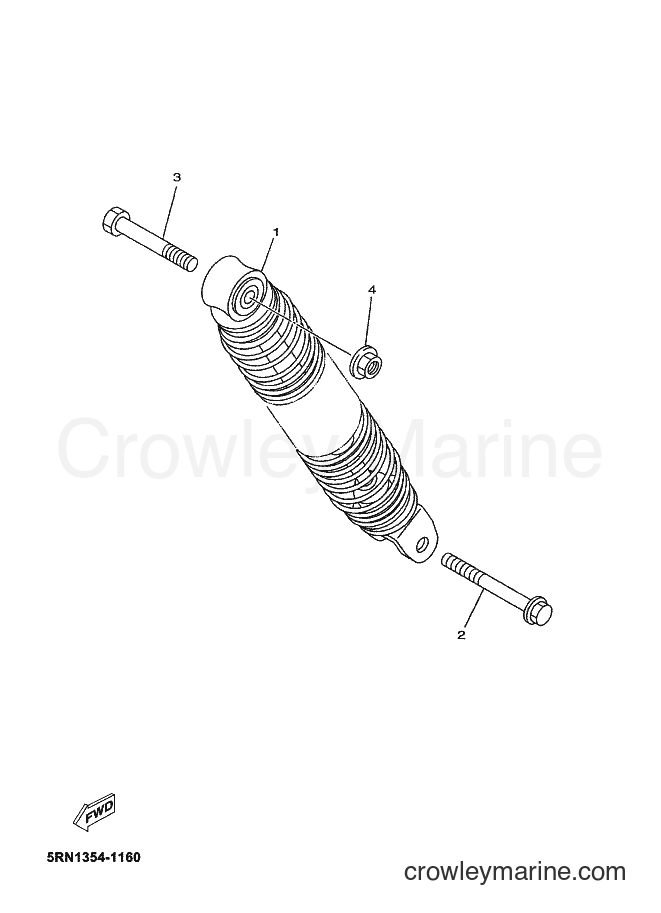

Yamaha Motors YN50 (5C2J) [060] - REAR SUSPENSION
Change View:
1
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-08121-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
BOLT
Price unavailable
4
Required: 1
NUT, SELF-LOCKING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
