All diagrams for this model

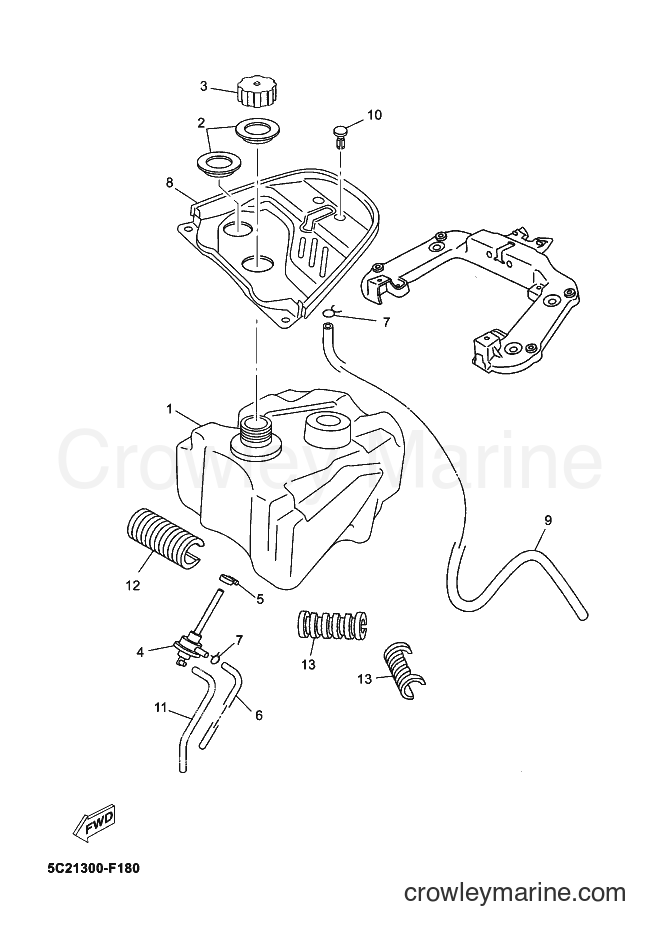

2011 Scooter YN50 - YN50 (5C2J) [080] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (5C2J) [080] - FUEL TANK
Change View:
1
Required: 1
FUEL TANK COMP.
Price unavailable
2
Required: 2
SEAL
Price unavailable
3
Required: 1
CAP ASSY
Price unavailable
4
Required: 1
FUEL COCK ASSY 1
Price unavailable
5
Required: 1
HOSE CLAMP ASSY
Price unavailable
6
Required: 1
PIPE, FUEL 1
Price unavailable
7
Required: 2
CLIP
Price unavailable
8
Required: 1
COVER, FILLER
Price unavailable
9
Required: 1
TUBE, DRAIN
Price unavailable
Rivet
10
Yamaha Motors
Rivet90269-07076-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 1
HOSE
Price unavailable
12
Required: 1
DAMPER, LOCATING 1
Price unavailable
13
Required: 2
DAMPER, LOCATING 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
