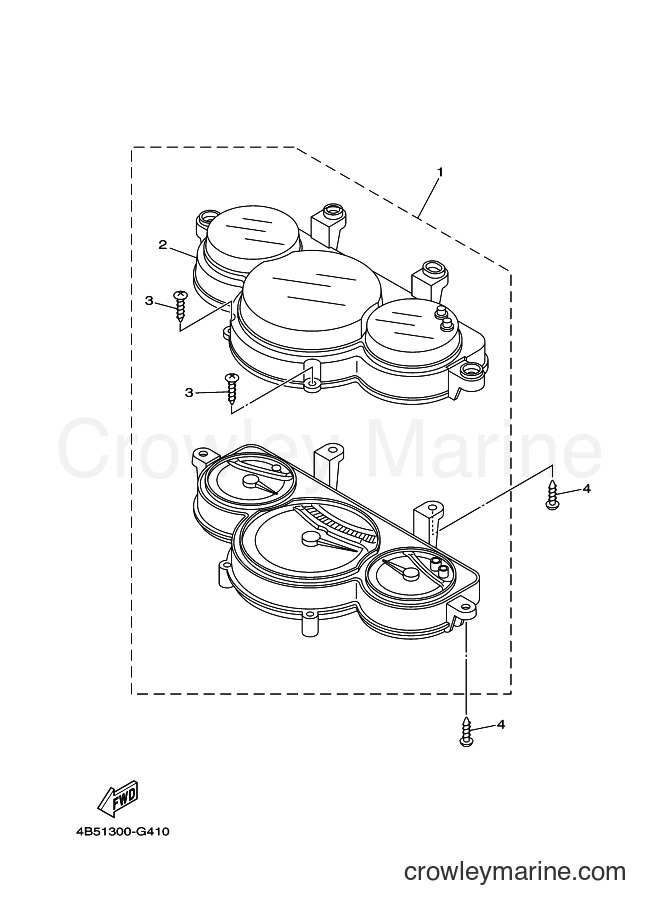

2011 Scooter XP500A - XP500A (1LD3) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500A (1LD3) [010] - METER
Change View:
1
Required: 1
METER ASSY (MPH)
Price unavailable
1
Required: 1
METER ASSY (KM/H)
Price unavailable
Speedometer Lens
2
Yamaha Motors
Speedometer Lens4B5-83511-00-00
Required: 1
. LENS, SPEEDOMETER
Cross Ship
Leaves in 2-5 days
$80.99
$68.84
You save $12.15
More details
Tapping Screw
3
Yamaha Motors
Tapping Screw4AS-83616-10-00
Required: 2
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
Tapping Screw
4
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
