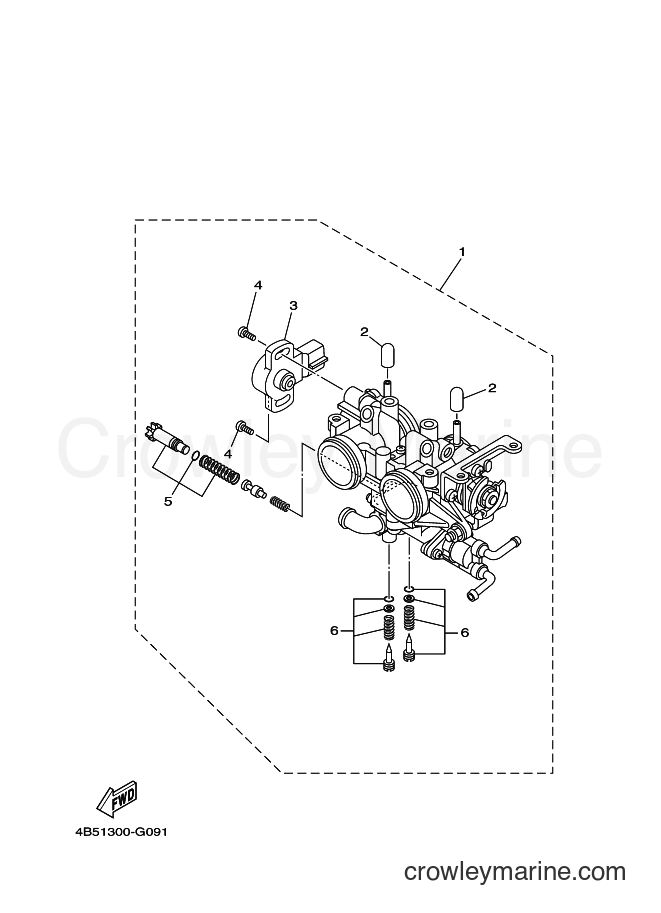

2011 Scooter XP500 - XP500 (4B5T) [010] INTAKE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (4B5T) [010] - INTAKE 2
Change View:
1
Required: 1
THROTTLE BODY ASSY
Price unavailable
Cap
2
Yamaha Motors
Cap84M-14169-00-00
Required: 2
. CAP
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)8CC-14216-10-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
ADJUST SCREW SET
5
Yamaha Motors
ADJUST SCREW SET5VX-14503-00-00
Required: 1
. ADJUST SCREW SET
Cross Ship
Leaves in 2-5 days
$92.99
$79.04
You save $13.95
More details
Air Screw Kit
6
Yamaha Motors
Air Screw Kit5JW-14104-00-00
Required: 2
. AIR SCREW SET
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
