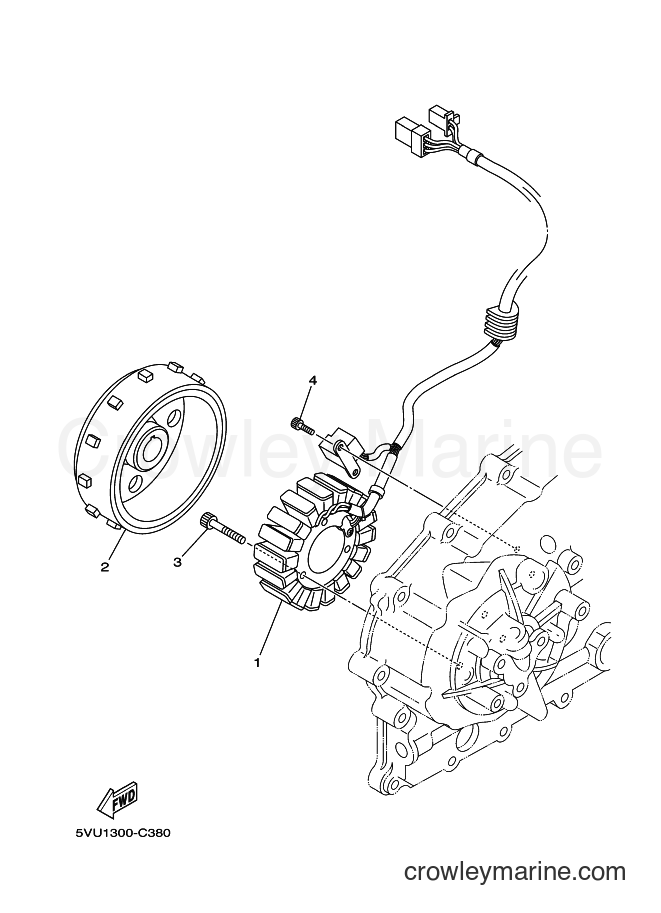

2011 Scooter XP500 - XP500 (1LD1) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (1LD1) [010] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly4B5-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$452.99
$385.04
You save $67.95
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly5VU-81450-01-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$321.99
$273.69
You save $48.30
More details
Bolt
3
Yamaha Motors
Bolt91312-06035-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06208-00
Cross Ship
Leaves in 2-5 days
$3.28
$2.79
You save $0.49
More details
91317-05012-00
4
Yamaha Motors
91317-05012-0091312-05012-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05032-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
