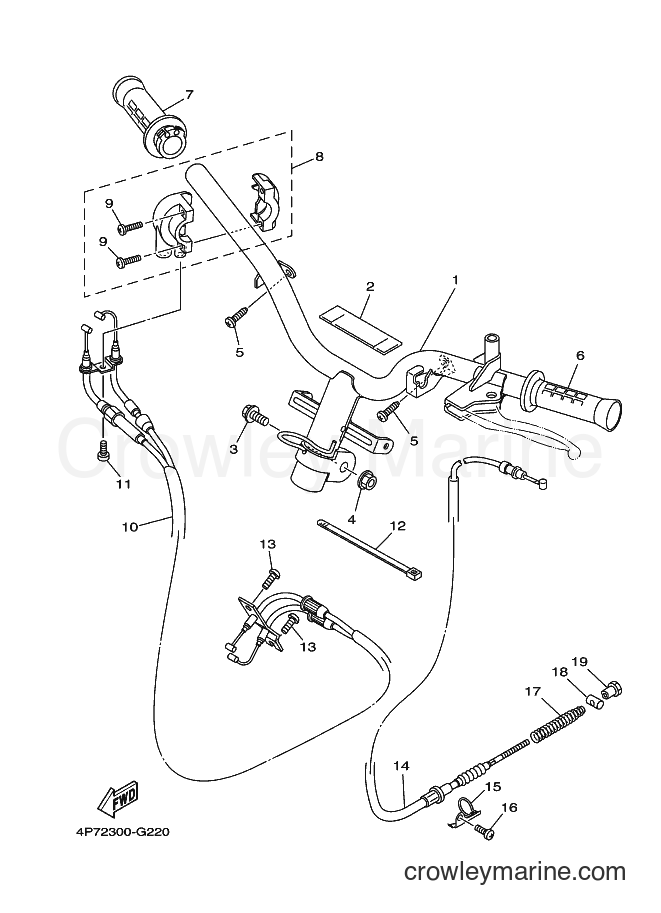

2011 Scooter XC125E - XC125E (4P79) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors XC125E (4P79) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/DSAVpBAh.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 1
BOLT, FLANGE
Price unavailable
4
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, S/L FLANGE
$2.29
You save $0.41
5
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
6
Required: 1
GRIP
Price unavailable
7
Required: 1
GRIP ASSY
Price unavailable
8
Required: 1
CAP GRIP ASSY
Price unavailable
9
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98502-05020-00
$1.49
You save $0.26
10
Required: 1
THROTTLE CABLE ASSY
Price unavailable
11
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
12
Required: 1
CLAMP
Price unavailable
13
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
$8.07
You save $1.42
14
Required: 1
CABLE, BRAKE
Price unavailable
15
Required: 1
HOLDER, WIRE
Price unavailable
16
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.49
You save $0.62
17
Yamaha Motors
Compression Spring90501-16831-00
Required: 1
SPRING, COMPRESSION
$2.00
You save $0.35
$1.02
You save $0.18
In stock
Only 1 remaining
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
