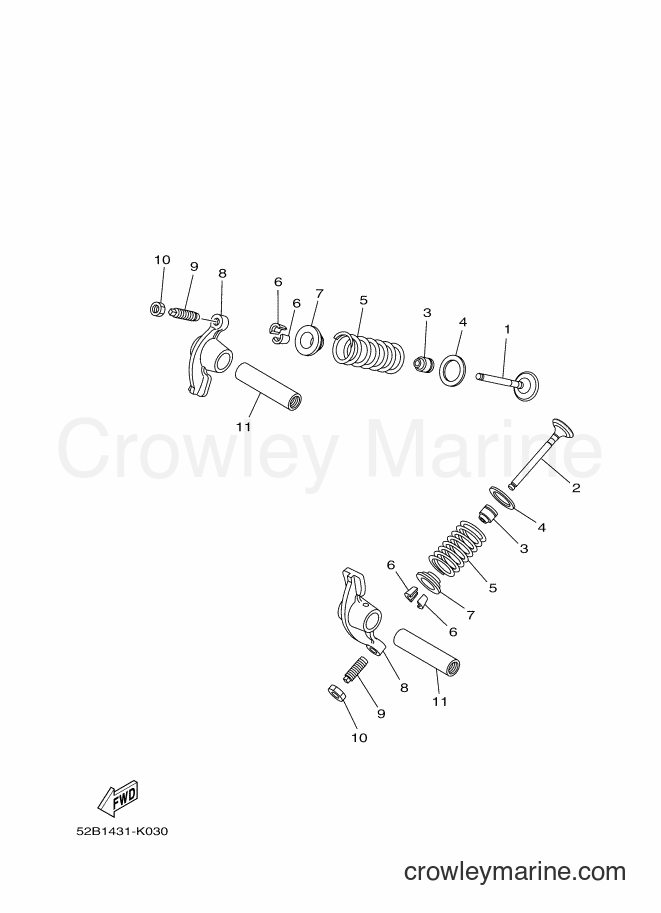

2011 Scooter XC115S - XC115S (52B3) [010] VALVE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (52B3) [010] - VALVE
Change View:
1
Required: 1
VALVE, INTAKE
Price unavailable
2
Required: 1
VALVE, EXHAUST
Price unavailable
3
Required: 2
SEAL, VALVE STEM
Price unavailable
4
Required: 2
SEAT, VALVE SPRING
Price unavailable
5
Required: 2
SPRING, VALVE INNER
Price unavailable
Valve Spring Retainer
7
Yamaha Motors
Valve Spring Retainer33M-12117-01-00
Required: 2
RETAINER, VALVE SPRING
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
8
Required: 2
ARM, VALVE ROCKER
Price unavailable
9
Required: 2
SCREW, VALVE ADJUSTING
Price unavailable
Nut
10
Yamaha Motors
Nut90170-05803-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
11
Required: 2
SHAFT, ROCKER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
