2011 Scooter XC115S - XC115S (52B3) [010] STEERING HANDLE & CABLE diagram

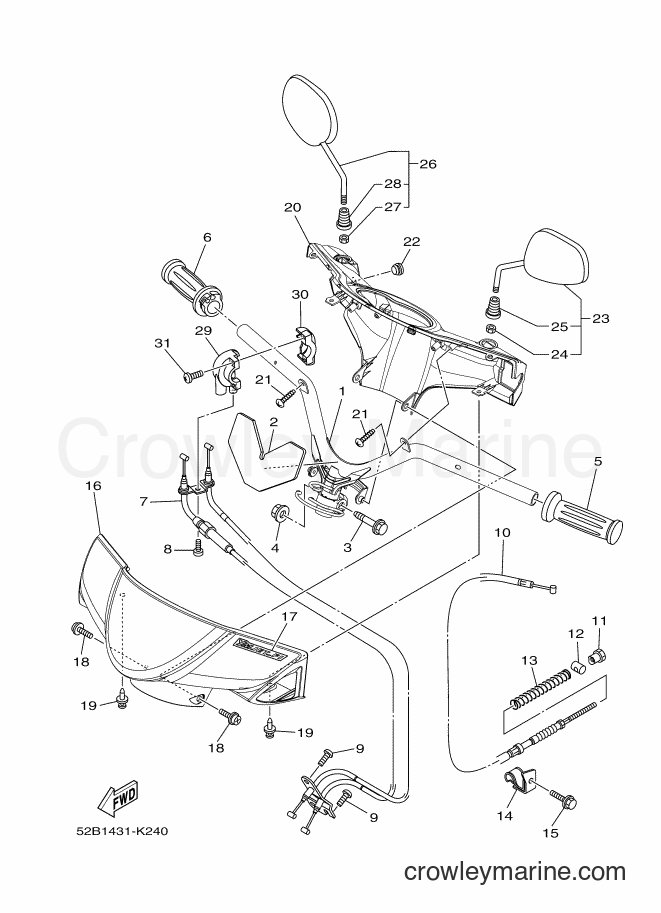

![Yamaha Motors XC115S (52B3) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/BNdHEtF8.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER
Price unavailable
$8.07
You save $1.42
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 1
GRIP (BROWN)
Price unavailable
5
Required: 1
GRIP (BLACK)
Price unavailable
6
Required: 1
GRIP ASSY (BLACK)
Price unavailable
6
Required: 1
GRIP ASSY (BROWN)
Price unavailable
7
Required: 1
THROTTLE CABLE ASSY
Price unavailable
-50%
8
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$2.30
You save $2.30
9
Yamaha Motors
Button Bolt92017-05012-00
Required: 2
BOLT, BUTTON HEAD
$3.27
You save $0.58
10
Required: 1
CABLE, BRAKE
Price unavailable
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
13
Required: 1
SPRING, COMPRESSION
Price unavailable
14
Required: 1
HOLDER 2
Price unavailable
15
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-06014-00
In stock
Only 1 remaining
$3.31
You save $-0.51
16
Required: 1
COVER,HAND,UPPER1(1251,YGM5)
Price unavailable
16
Required: 1
COVER,HAND,UPPER1(0903,SMX)
Price unavailable
16
Required: 1
COVER,HAND,UPPER1(1250,DPMC)
Price unavailable
17
Required: 1
EMBLEM
Price unavailable
17
Required: 1
EMBLEM
Price unavailable
18
Required: 2
SCREW, WITH WASHER
Price unavailable
$1.10
You save $0.20
20
Required: 1
COVER,HAND,UPPER 2(00UK,BEG)
Price unavailable
20
Required: 1
COVER,HAND,UPPER 2(1116,BS6)
Price unavailable
20
Required: 1
COVER,HAND,UPPER 2(0033,YB)
Price unavailable
21
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
22
Required: 1
PLUG, BLIND
Price unavailable
23
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
24
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
25
Required: 1
. BOOT 1
Price unavailable
26
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
27
Required: 1
. NUT
Price unavailable
28
Required: 1
. BOOT 1
Price unavailable
29
Required: 1
CAP, GRIP UPPER
Price unavailable
30
Required: 1
CAP, GRIP UNDER
Price unavailable
31
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-05020-00
$3.15
You save $-1.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
