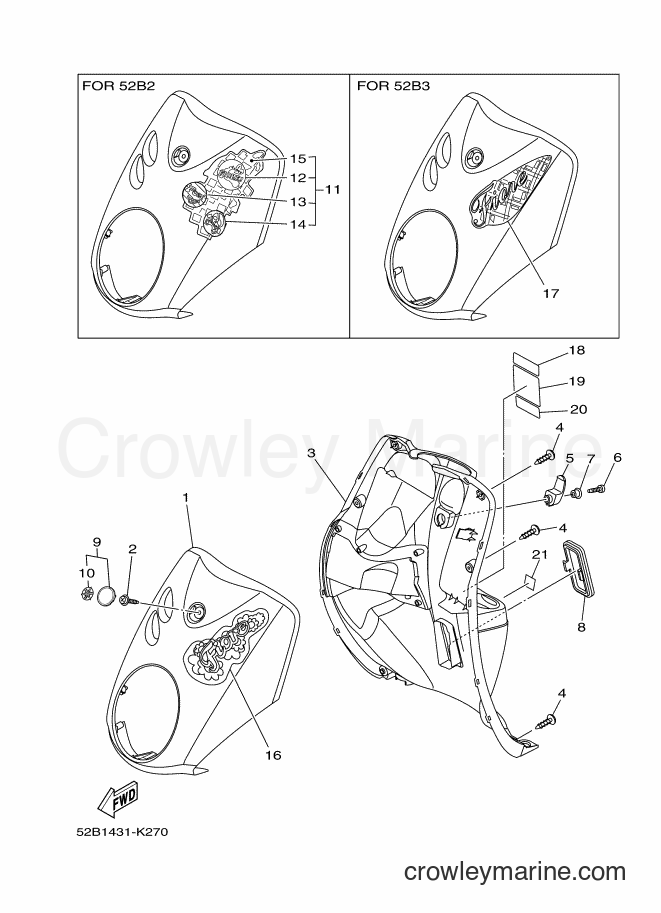

2011 Scooter XC115S - XC115S (52B1) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (52B1) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL(0903,SMX)
Price unavailable
1
Required: 1
PANEL(1250,DPRMC)
Price unavailable
1
Required: 1
PANEL(1251,YGM5)
Price unavailable
2
Required: 1
SCREW, WITH WASHER
Price unavailable
3
Required: 1
LEG SHIELD ASSY(1074,VRS4)
Price unavailable
3
Required: 1
LEG SHIELD ASSY(00E9,CMR)
Price unavailable
3
Required: 1
LEG SHIELD ASSY(00UK,BEG)
Price unavailable
3
Required: 1
LEG SHIELD ASSY(0033,YB)
Price unavailable
3
Required: 1
LEG SHIELD ASSY(1116,BS6)
Price unavailable
5
Required: 1
HOOK 1
Price unavailable
Bind Screw
6
Yamaha Motors
Bind Screw98907-06025-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
GROMMET
Price unavailable
8
Required: 1
CAP (00UK,BEG)
Price unavailable
8
Required: 1
CAP (00E9,CMR)
Price unavailable
8
Required: 1
CAP (0033,YB)
Price unavailable
9
Required: 1
CAP 2
Price unavailable
10
Required: 1
. EMBLEM
Price unavailable
11
Required: 1
GRAPHIC SET, PANEL FRONT
Price unavailable
12
Required: 1
. GRAPHIC, 2
Price unavailable
13
Required: 1
. EMBLEM 1
Price unavailable
14
Required: 1
. EMBLEM 2
Price unavailable
15
Required: 1
. EMBLEM 3
Price unavailable
16
Required: 1
GRAPHIC, 1
Price unavailable
17
Required: 1
GRAPHIC, 3
Price unavailable
18
Required: 1
LABEL, WARNING
Price unavailable
19
Required: 1
LABEL, CAUTION
Price unavailable
20
Required: 1
LABEL, SAFETY
Price unavailable
21
Required: 1
LABEL,FUEL
Price unavailable
