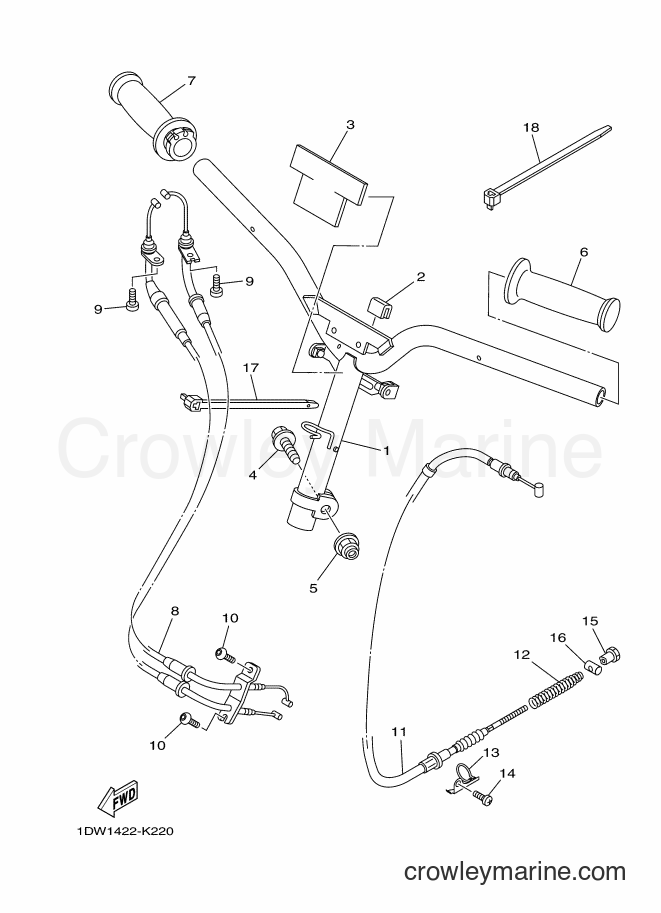

2011 Scooter XC100N - XC100N (1DW1) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER, PLATE
Price unavailable
3
Required: 1
DAMPER
Price unavailable
Washer Based Bolt
4
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SELF-LOCKING NUT
5
Yamaha Motors
SELF-LOCKING NUT90185-10801-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
6
Required: 1
GRIP
Price unavailable
7
Required: 1
GRIP ASSY
Price unavailable
8
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Socket Bolt
9
Yamaha Motors
Socket Bolt91317-05010-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
Button head bolt
10
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
CABLE, BRAKE
Price unavailable
12
Required: 1
SPRING, COMPRESSION
Price unavailable
13
Required: 1
HOLDER, WIRE
Price unavailable
Screw
14
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
Clamp
17
Yamaha Motors
Clamp90464-12812-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Clamp
18
Yamaha Motors
Clamp90464-15840-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
