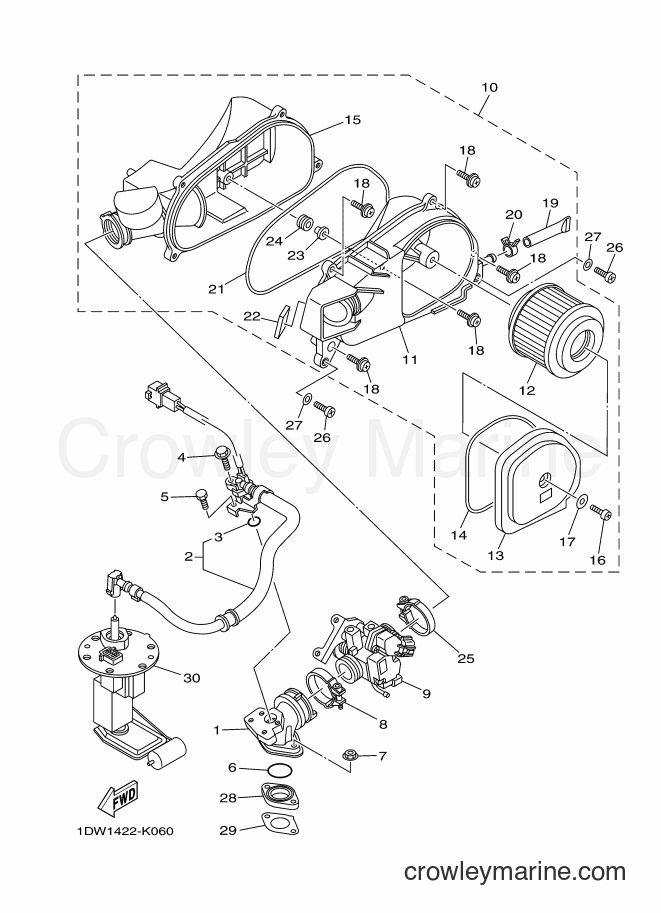

2011 Scooter XC100N - XC100N (1DW1) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
PIPE INLET ASSEMBLY
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring5CA-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95817-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$3.60
You save $-1.85
More details
BOLT
5
Yamaha Motors
BOLT97017-05012-00
Required: 1
BOLT, HEXAGON
Supersedes: 97027-05012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
O-RING
Price unavailable
Flange Nut
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
8
Required: 1
BAND
Price unavailable
9
Required: 1
THROTTLE BODY ASSY
Price unavailable
10
Required: 1
AIR CLEANER ASSY.
Price unavailable
11
Required: 1
. AIR CLEANER CASE COMP.
Price unavailable
12
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
13
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
14
Required: 1
. SEAL
Price unavailable
15
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.60
You save $0.45
More details
PAN HEAD SCREW
18
Yamaha Motors
PAN HEAD SCREW97607-06225-00
Required: 5
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Drain Pipe
19
Yamaha Motors
Drain Pipe5HK-E443E-01-00
Required: 1
. PIPE, DRAIN
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Clip (3YX)
20
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
. CLIP
Supersedes: 90467-13813-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
21
Required: 1
. SEAL
Price unavailable
22
Required: 1
. DAMPER 1
Price unavailable
COLLAR
23
Yamaha Motors
COLLAR90387-06737-00
Required: 1
. COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
GROMMET, WATER TUBE (UPPER)
24
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12807-00
Required: 1
. GROMMET
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
25
Required: 1
BAND
Price unavailable
Pan Head Screw
26
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.60
You save $0.45
More details
28
Required: 1
JOINT
Price unavailable
29
Required: 1
GASKET, MANIFOLD
Price unavailable
30
Required: 1
FUEL PUMP COMP.
Price unavailable
