2011 Scooter XC100N - XC100N (1DW1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

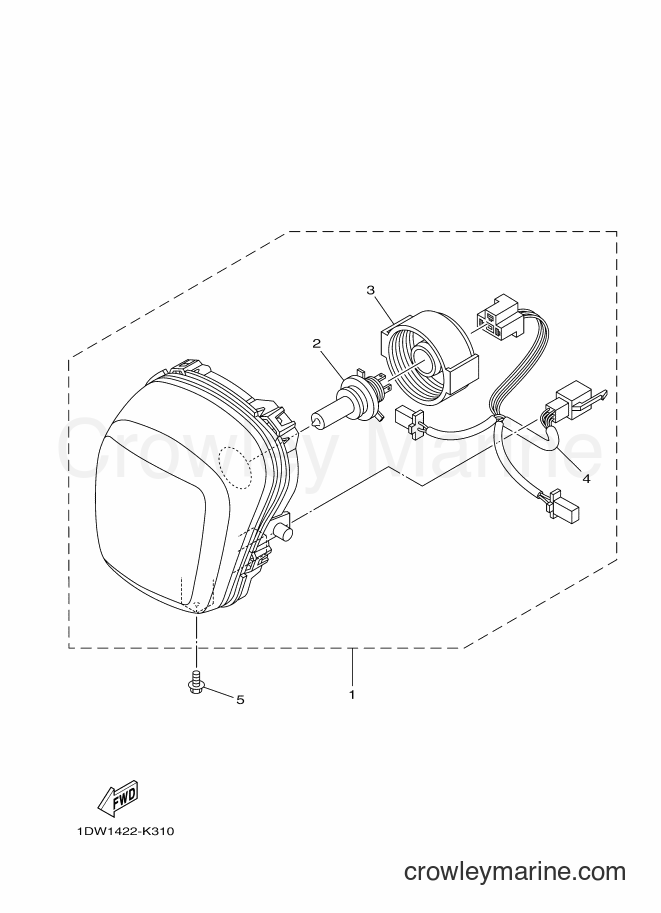

Yamaha Motors XC100N (1DW1) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB, HEADLIGHT (12V 35/35W)
Price unavailable
3
Required: 1
. COVER, SOCKET
Price unavailable
4
Required: 1
. CORD ASSY
Price unavailable
WCREW WITH WASHER
5
Yamaha Motors
WCREW WITH WASHER90159-05155-00
Required: 1
SCREW
Supersedes: 90149-05203-00
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
