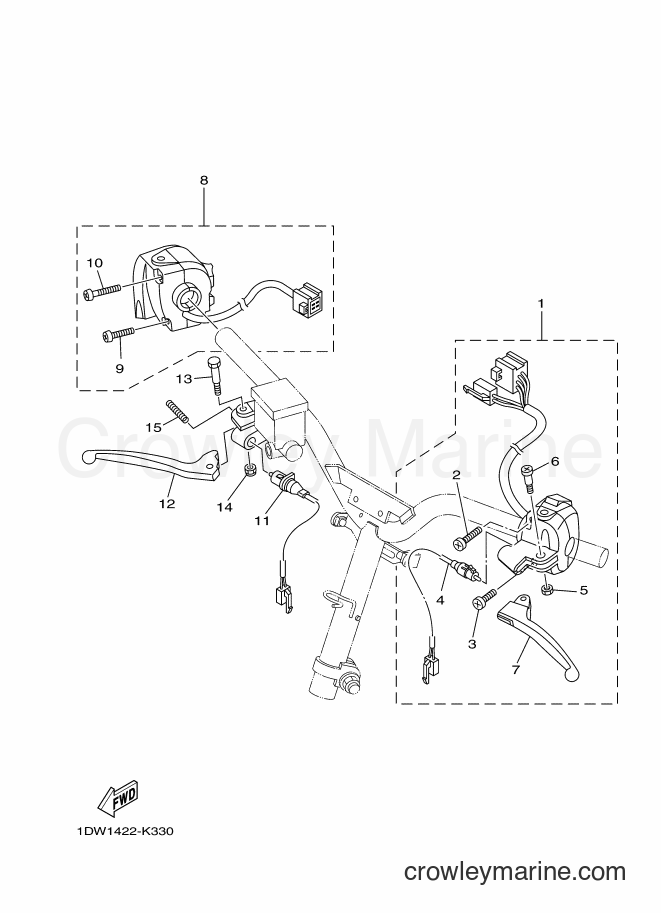

2011 Scooter XC100N - XC100N (1DW1) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
LEVER HOLDER ASSY (LEFT)
Price unavailable
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
4
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
NUT
5
Yamaha Motors
NUT95617-05100-00
Required: 1
. NUT, U
Supersedes: 95607-05100-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 1
. SCREW, PAN HEAD
Price unavailable
7
Required: 1
. LEVER 1
Price unavailable
8
Required: 1
SWITCH, HANDLE 2
Price unavailable
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
11
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
12
Required: 1
LEVER 2
Price unavailable
BOLT
13
Yamaha Motors
BOLT90109-06577-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT
14
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
Compression Spring
15
Yamaha Motors
Compression Spring90501-10312-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
