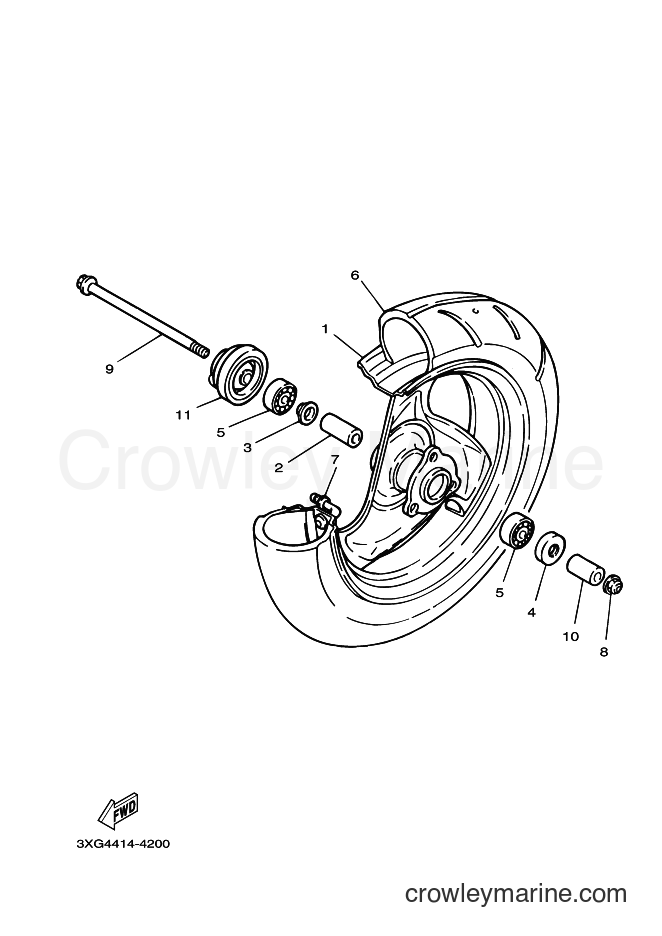

2011 Scooter XC100N - XC100N (1DW1) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - FRONT WHEEL
Change View:
1
Required: 1
WHEEL COMP.
Price unavailable
2
Required: 1
COLLAR
Price unavailable
3
Required: 1
FLANGE, SPACER 1
Price unavailable
Oil Seal
4
Yamaha Motors
Oil Seal93106-20813-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
5
Required: 2
BEARING
Price unavailable
6
Required: 1
TIRE (90/90-10 50J)
Price unavailable
RIM VALVE
7
Yamaha Motors
RIM VALVE93900-00814-00
Required: 1
VALVE, RIM (PVR70)
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
SELF-LOCKING NUT
8
Yamaha Motors
SELF-LOCKING NUT90185-10801-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
9
Required: 1
AXLE, WHEEL
Price unavailable
517 F. WHEEL COLLAR
10
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
