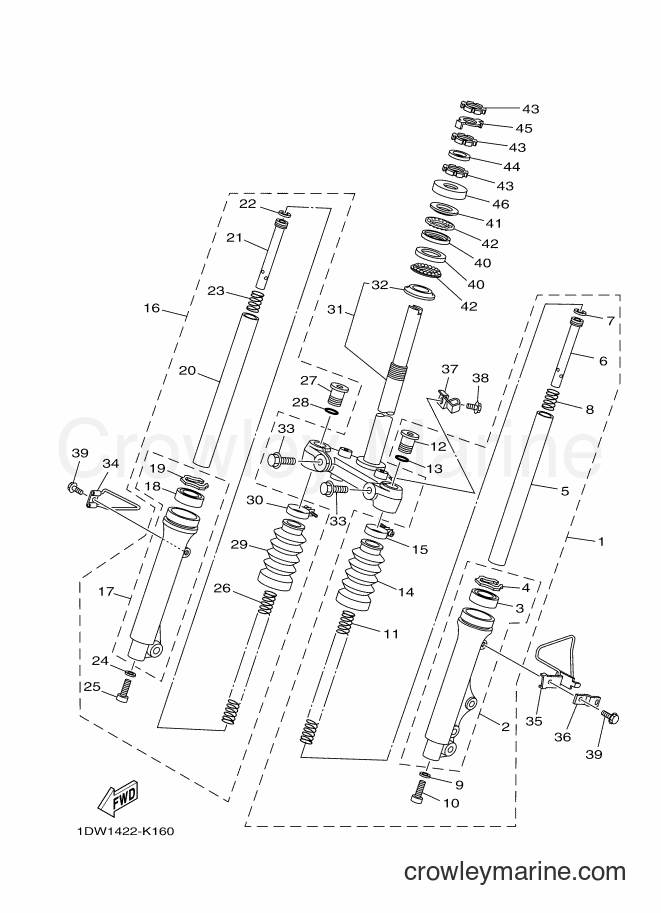

2011 Scooter XC100N - XC100N (1DW1) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. . OIL SEAL
Price unavailable
4
Required: 1
. . RING, SNAP
Price unavailable
5
Required: 1
. INNER TUBE COMP.1
Price unavailable
6
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
7
Required: 1
. RING, PISTON
Price unavailable
8
Required: 1
. SPRING, SUB
Price unavailable
Tank Cap Gasket
9
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 1
. GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
Hexagon Socket Bolt
10
Yamaha Motors
Hexagon Socket Bolt3D8-23181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 31B-F3181-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
. SPRING, FRONT FORK
Price unavailable
12
Required: 1
. BOLT, CAP
Price unavailable
13
Required: 1
. O-RING
Price unavailable
14
Required: 1
. BOOT
Price unavailable
15
Required: 1
. BAND
Price unavailable
16
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
17
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
18
Required: 1
. . OIL SEAL
Price unavailable
19
Required: 1
. . RING, SNAP
Price unavailable
20
Required: 1
. INNER TUBE COMP.1
Price unavailable
21
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
22
Required: 1
. RING, PISTON
Price unavailable
23
Required: 1
. SPRING, SUB
Price unavailable
Tank Cap Gasket
24
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 1
. GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
Hexagon Socket Bolt
25
Yamaha Motors
Hexagon Socket Bolt3D8-23181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 31B-F3181-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
26
Required: 1
. SPRING, FRONT FORK
Price unavailable
27
Required: 1
. BOLT, CAP
Price unavailable
28
Required: 1
. O-RING
Price unavailable
29
Required: 1
. BOOT
Price unavailable
30
Required: 1
. BAND
Price unavailable
31
Required: 1
UNDER BRACKET COMP.
Price unavailable
32
Required: 1
. RACE, BALL 4
Price unavailable
BOLT
33
Yamaha Motors
BOLT2JK-F3346-00-00
Required: 2
BOLT 1
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
34
Required: 1
HOLDER, CABLE
Price unavailable
35
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
36
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
37
Required: 1
GUIDE, CABLE
Price unavailable
FLANGE BOLT
38
Yamaha Motors
FLANGE BOLT9580L-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.55
$0.47
You save $0.08
More details
Flange Bolt
39
Yamaha Motors
Flange Bolt9580L-06010-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
BALL RACE
40
Yamaha Motors
BALL RACE4C6-F3414-00-00
Required: 2
RACE, BALL 4
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Ball Race
41
Yamaha Motors
Ball Race4C6-F3413-00-00
Required: 1
RACE, BALL 3
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
42
Required: 2
RETAINER, BALL BEARING
Price unavailable
SPECIAL SHAPE NUT
43
Yamaha Motors
SPECIAL SHAPE NUT90179-25615-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Plate Washer
44
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Special Washer
45
Yamaha Motors
Special Washer4VP-F3418-00-00
Required: 1
WASHER, SPECIAL
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
46
Required: 1
COVER, BALL RACE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
