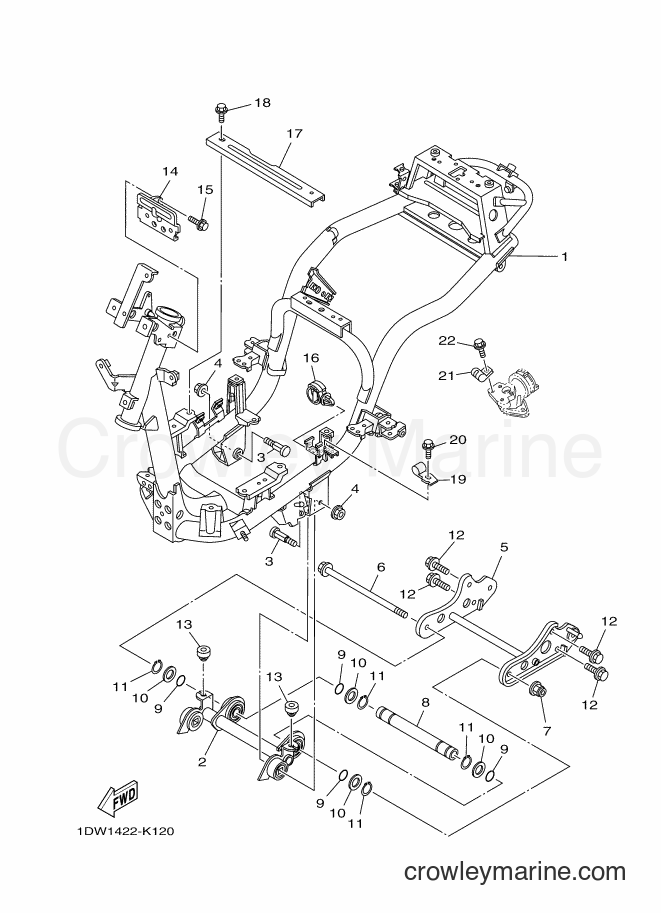

2011 Scooter XC100N - XC100N (1DW1) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW1) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
ENGINE MOUNTING BOLT
3
Yamaha Motors
ENGINE MOUNTING BOLT4CW-F1481-00-00
Required: 2
BOLT, ENGINE MOUNTING 1
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
SELF-LOCKING NUT
4
Yamaha Motors
SELF-LOCKING NUT90185-10801-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
5
Required: 1
ENGINE BRACKET COMP.
Price unavailable
Flange Bolt
6
Yamaha Motors
Flange Bolt90105-10836-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
SELF-LOCKING NUT
7
Yamaha Motors
SELF-LOCKING NUT90185-10801-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
8
Required: 1
SPACER
Price unavailable
O-Ring
9
Yamaha Motors
O-Ring93210-15822-00
Required: 4
O-RING
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
Plate Washer
10
Yamaha Motors
Plate Washer90201-173U5-00
Required: 4
WASHER, PLATE
Supersedes: 90201-17485-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Circle Clip
11
Yamaha Motors
Circle Clip99009-17400-00
Required: 4
CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-10030-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 2
STOPPER
Price unavailable
14
Required: 1
BRACKET, FRONT UPPER 1
Price unavailable
Clamp
16
Yamaha Motors
Clamp90464-20803-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
17
Required: 1
BRACKET 11
Price unavailable
19
Required: 1
HOLDER, FUEL PIPE
Price unavailable
21
Required: 1
HOLDER, CABLE
Price unavailable
Flange Bolt
22
Yamaha Motors
Flange Bolt95027-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
