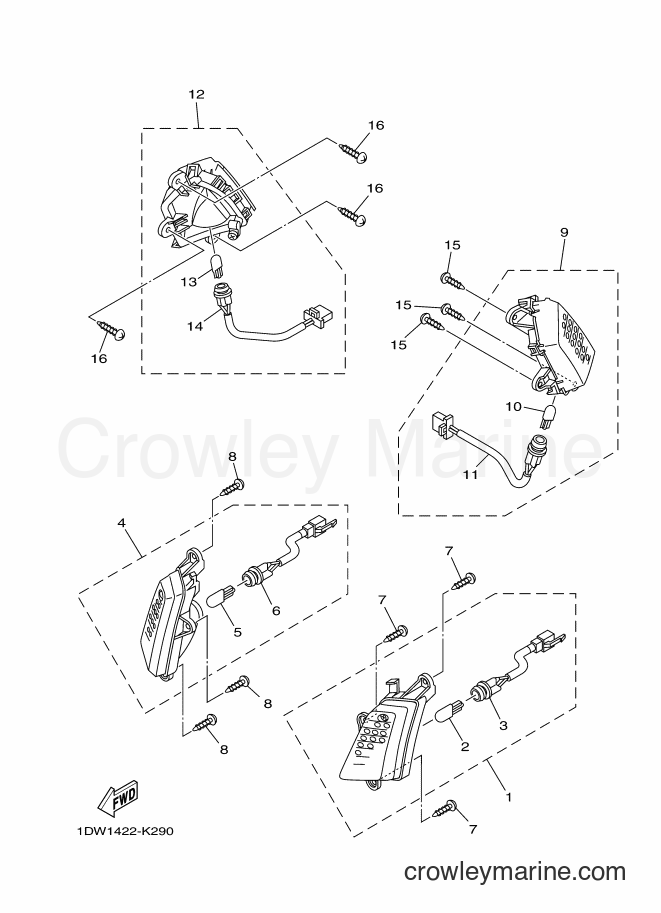

2011 Scooter XC100N - XC100N (1DW1) [010] FLASHER LIGHT diagram
![Yamaha Motors XC100N (1DW1) [010] - FLASHER LIGHT](https://cdn.crowleymarine.com/yamaha/K0drgiSq.png)
1
Required: 1
FRONT FLASHER LIGHT ASSY 1
Price unavailable
2
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
3
Required: 1
. CORD ASSY
Price unavailable
4
Required: 1
FRONT FLASHER LIGHT ASSY 2
Price unavailable
5
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
6
Required: 1
. CORD ASSY
Price unavailable
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
10
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
11
Required: 1
. CORD ASS'Y
Price unavailable
12
Required: 1
REAR FLASHER LIGHT ASSY 2
Price unavailable
13
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
14
Required: 1
. CORD ASS'Y
Price unavailable
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
16
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
