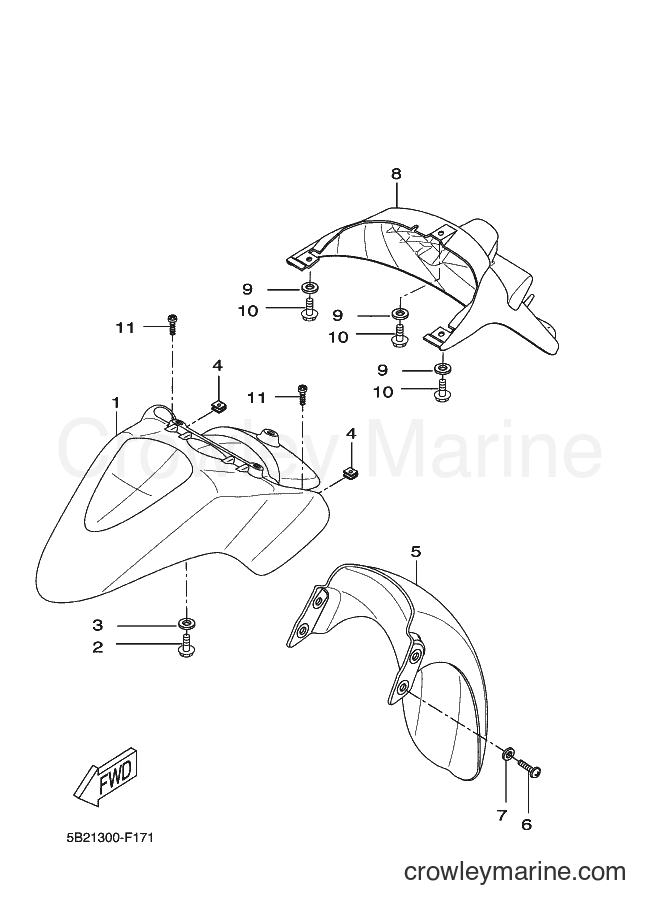

2011 Scooter VP250 - VP250 (5B27) [020] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B27) [020] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 3
BOLT, FLANGE
Price unavailable
3
Required: 3
WASHER, PLATE
Price unavailable
Spring Nut
4
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
FENDER, FRONT 2
Price unavailable
6
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
7
Required: 4
WASHER, PLATE
Price unavailable
8
Required: 1
GUARD, FLAP
Price unavailable
9
Required: 3
WASHER, PLATE
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95817-06016-00
Required: 3
BOLT, FLANGE
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Tapping Screw
11
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
