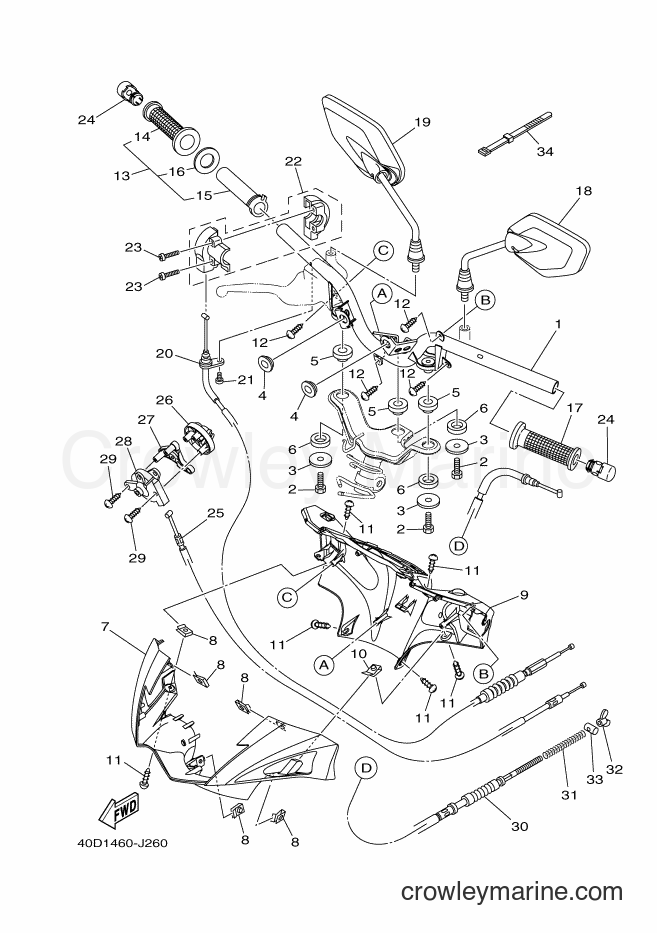

2011 Scooter TK115C - TK115C (40D1) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors TK115C (40D1) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/pWFZl9IB.png)
1
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
$3.95
You save $0.70
5
Required: 3
DAMPER 1
Price unavailable
6
Required: 3
DAMPER 2
Price unavailable
7
Required: 1
COVER,HAND,UPPER 1
Price unavailable
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
9
Required: 1
COVER,HAND,UPPER 2
Price unavailable
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
12
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
13
Required: 1
GRIP ASSY
Price unavailable
14
Required: 1
. GRIP (RIGHT)
Price unavailable
15
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
16
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
. WASHER, PLATE
$9.77
You save $1.72
17
Required: 1
GRIP
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
20
Required: 1
CABLE, THROTTLE 1
Price unavailable
21
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
22
Required: 1
CAP GRIP ASSY
Price unavailable
23
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
24
Required: 2
END, GRIP
Price unavailable
25
Required: 1
CABLE, STARTER 1
Price unavailable
26
Required: 1
KNOB, 1
Price unavailable
27
Required: 1
LEVER
Price unavailable
28
Required: 1
STARTER ASSY
Price unavailable
29
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
30
Required: 1
CABLE, BRAKE
Price unavailable
31
Required: 1
SPRING, COMPRESSION
Price unavailable
In stock
Only 1 remaining
$4.67
You save $0.82
In stock
Only 4 remaining
$8.07
You save $1.42
34
Required: 2
BAND, SWITCH CORD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
