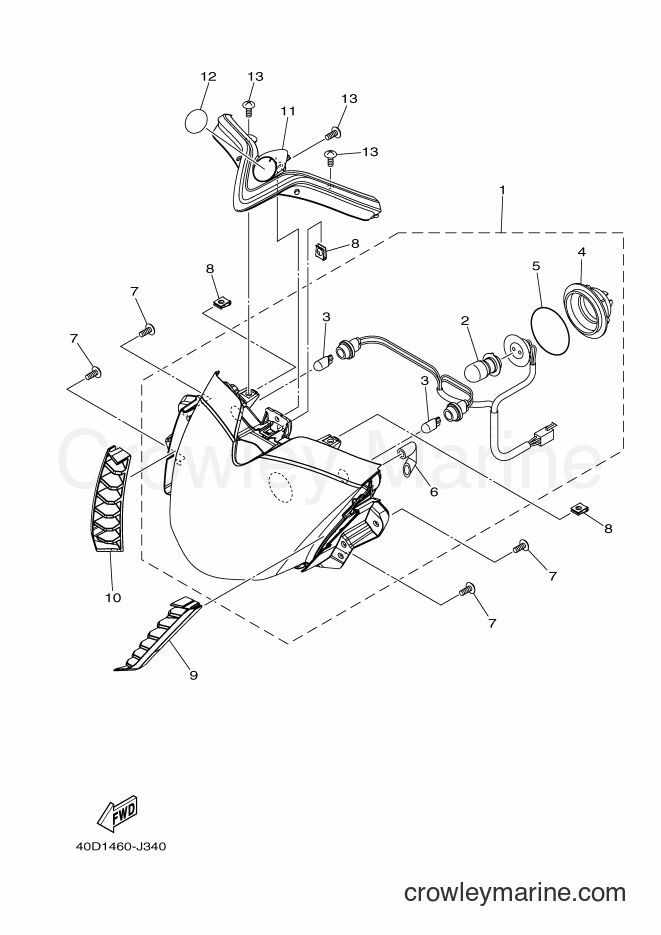

Yamaha Motors TK115C (40D1) [010] - HEADLIGHT

Change View:

Required: 1

HEADLIGHT UNIT ASSY

Price unavailable

Required: 1

. BULB (12V-32/32W)

Price unavailable

Required: 2

. BULB (12V-3.4W)

Price unavailable

Required: 1

. COVER, SOCKET

Price unavailable

Required: 1

. O-RING 3

Price unavailable

Required: 2

. CAP

Price unavailable

Yamaha Motors

Truss Head Tapping Screw97707-50016-00

Required: 5

SCREW, TRUSS HEAD TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Yamaha Motors

Spring Nut90183-05042-00

Required: 3

NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.85

You save $0.15

More details

Required: 1

DAMPER, HEADLIGHT 1

Price unavailable

Required: 1

DAMPER, HEADLIGHT 2

Price unavailable

Required: 1

COVER

Price unavailable

Required: 1

EMBLEM

Price unavailable

Yamaha Motors

Truss Screw97707-50012-00

Required: 3

SCREW, TRUSS HEAD TAPPING

~~$4.63~~

$3.94

You save $0.69

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
