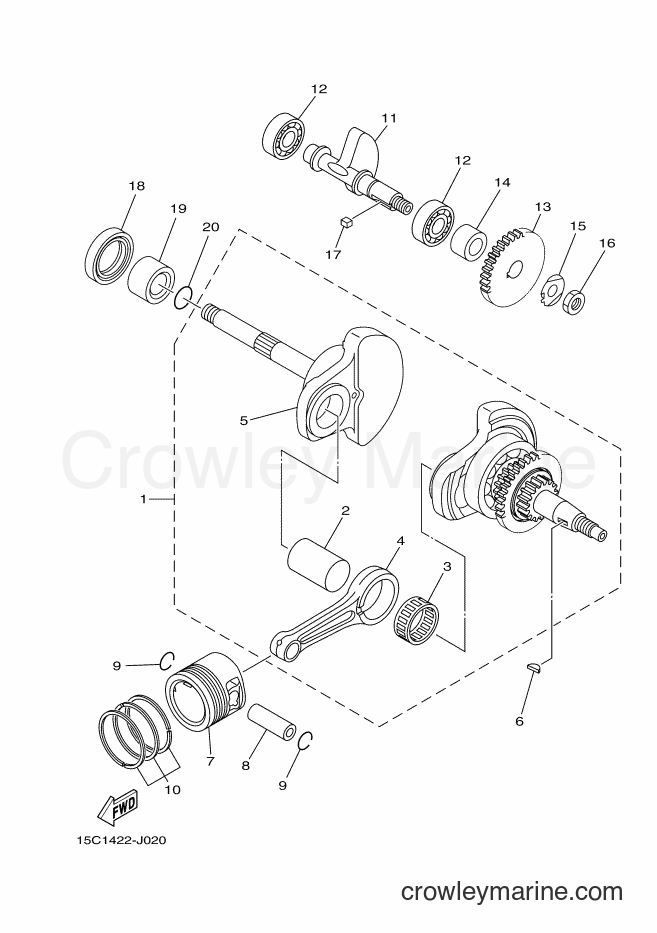

2011 Scooter TK115 - TK115 (15C3) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115 (15C3) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
. PIN, CRANK 1
Price unavailable
3
Required: 1
. BEARING
Price unavailable
4
Required: 1
. ROD, CONNECTING
Price unavailable
5
Required: 1
. CRANK 2
Price unavailable
Woodruff Key
6
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 1
PISTON (1.00MM O/S)
Price unavailable
7
Required: 1
PISTON (0.50MM O/S)
Price unavailable
7
Required: 1
PISTON (STD)
Price unavailable
Piston Pin (T105SE)
8
Yamaha Motors
Piston Pin (T105SE)5LM-E1633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
Circle Clip
9
Yamaha Motors
Circle Clip93450-14088-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
10
Required: 1
PISTON RING SET (STD)
Price unavailable
10
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
10
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
11
Required: 1
WEIGHT 1
Price unavailable
12
Required: 2
BEARING
Price unavailable
13
Required: 1
GEAR, BALANCE WEIGHT
Price unavailable
14
Required: 1
COLLAR
Price unavailable
LOCK WASHER 4BA
15
Yamaha Motors
LOCK WASHER 4BA90215-10284-00
Required: 1
WASHER, LOCK
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Nut
16
Yamaha Motors
Nut90170-10012-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Straight Key
17
Yamaha Motors
Straight Key90282-05031-00
Required: 1
KEY, STRAIGHT
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
18
Required: 1
OIL SEAL
Price unavailable
19
Required: 1
COLLAR
Price unavailable
20
Required: 1
O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
