2011 Scooter TK115C - TK115C (15C4) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

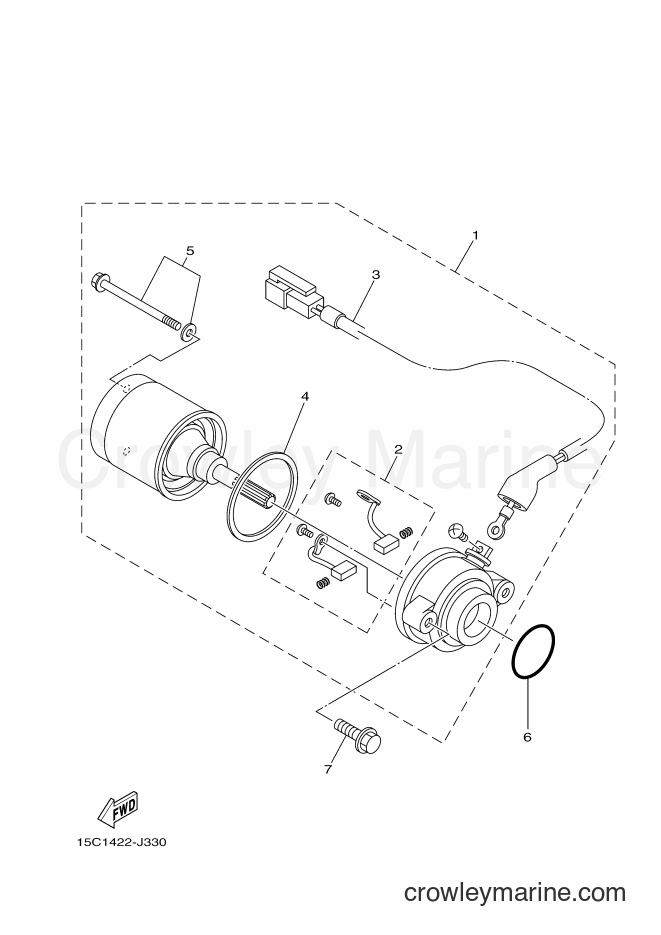

Yamaha Motors TK115C (15C4) [010] - STARTING MOTOR
Change View:
1
Required: 1
STARTING MOTOR ASSY
Price unavailable
Brush Set (3P91)
2
Yamaha Motors
Brush Set (3P91)5TP-H1801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
3
Required: 1
. CORD COMP.
Price unavailable
4
Required: 1
. GASKET
Price unavailable
5
Required: 2
. SCREW 1
Price unavailable
6
Required: 1
O-RING
Price unavailable
Bolt Flange (6U1)
7
Yamaha Motors
Bolt Flange (6U1)95027-06020-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
