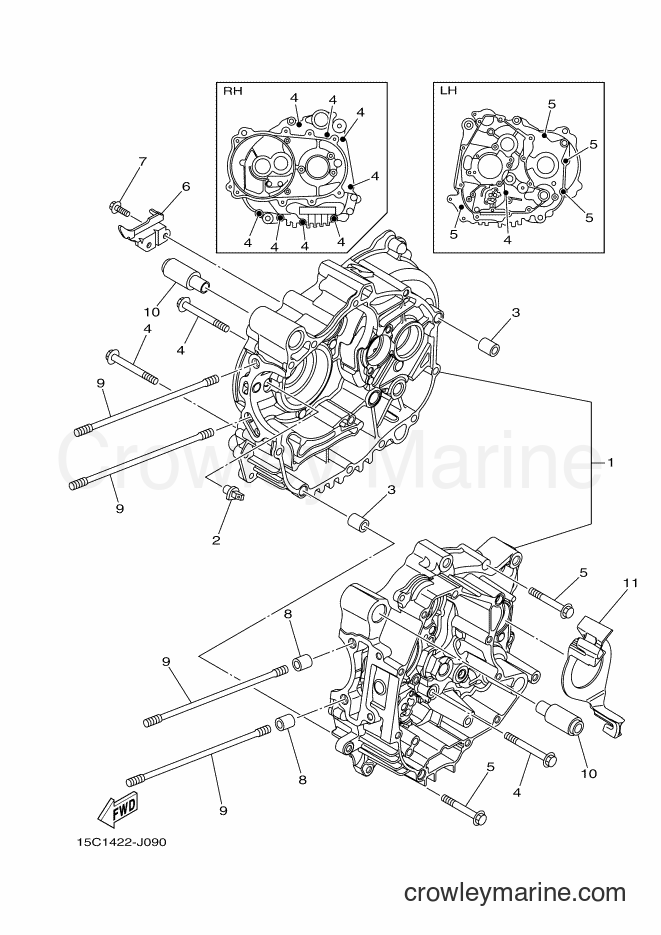

2011 Scooter TK115C - TK115C (15C4) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115C (15C4) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
NOZZLE 3
Price unavailable
3
Required: 2
PIN, DOWEL
Price unavailable
Small Bolt Flange
4
Yamaha Motors
Small Bolt Flange95027-06060-00
Required: 9
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Small Flange Bolt
5
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
6
Required: 1
PLATE, OIL GUIDE
Price unavailable
Washer Based Bolt
7
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 2
PIN, DOWEL
Price unavailable
9
Required: 4
BOLT, STUD
Price unavailable
10
Required: 2
DAMPER 1
Price unavailable
11
Required: 1
GUIDE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
