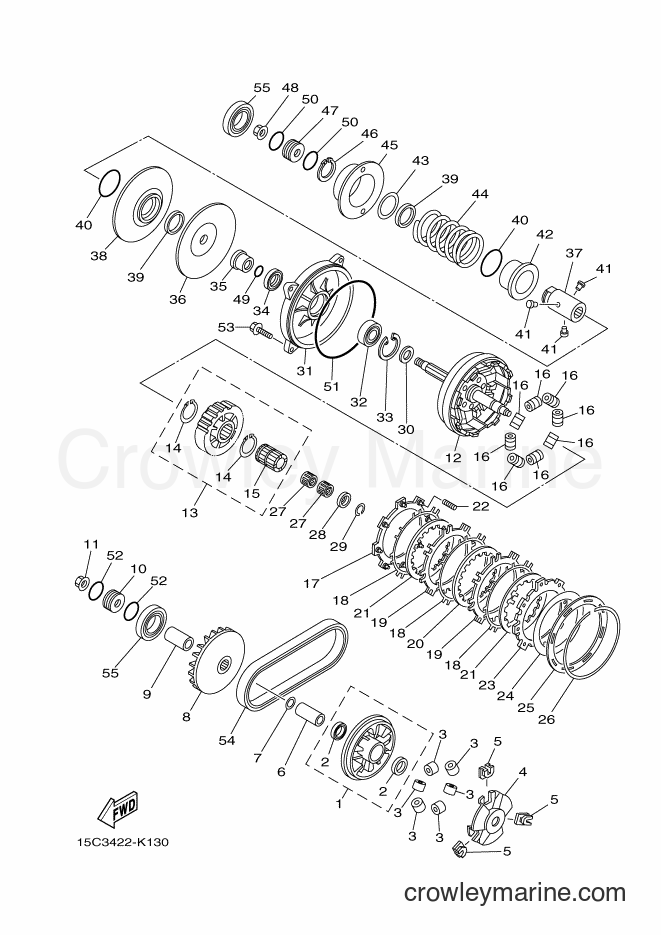

2011 Scooter TK115 - TK115 (15C3) [010] CLUTCH diagram
![Yamaha Motors TK115 (15C3) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/aHiyGPnz.png)
1
Required: 1
PRI. SLIDING SHEAVE SUB ASSY
Price unavailable
2
Required: 2
. OIL SEAL
Price unavailable
3
Required: 6
WEIGHT
Price unavailable
4
Required: 1
CAM
Price unavailable
5
Required: 3
SLIDER
Price unavailable
6
Required: 1
COLLAR
Price unavailable
7
Required: 1
WASHER, PLATE
Price unavailable
8
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
9
Required: 1
COLLAR
Price unavailable
10
Required: 1
SPACER
Price unavailable
11
Required: 1
NUT
Price unavailable
12
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
13
Required: 1
PRIMARY DRIVE GEAR ASSY
Price unavailable
$8.07
You save $1.42
15
Required: 1
. GEAR, PRIMARY DRIVE
Price unavailable
16
Required: 8
ROLLER WEIGHT ASSY
Price unavailable
17
Required: 1
PLATE, THRUST WEIGHT
Price unavailable
18
Required: 3
SPRING, CLUTCH
Price unavailable
19
Required: 2
PLATE, FRICTION
Price unavailable
20
Required: 1
PLATE, CLUTCH 1
Price unavailable
21
Required: 2
PLATE, CLUTCH 2
Price unavailable
22
Required: 8
SPRING
Price unavailable
23
Required: 1
PLATE, PRESSURE 1
Price unavailable
24
Required: 1
SPRING, CLUTCH 2
Price unavailable
25
Required: 1
PLATE, SPRING STOPPER
Price unavailable
26
Required: 1
CLIP
Price unavailable
27
Required: 2
BEARING
Price unavailable
28
Required: 1
COLLAR, DISTANCE 3
Price unavailable
$0.68
You save $0.12
30
Yamaha Motors
Plate Washer90201-17713-00
Required: 1
WASHER, PLATE
$7.22
You save $1.27
31
Required: 1
HOUSING, BEARING
Price unavailable
32
Required: 1
BEARING
Price unavailable
33
Yamaha Motors
Circle Clip93420-40064-00
Required: 1
CIRCLIP
Supersedes: 99009-40500-00
$8.92
You save $1.57
34
Required: 1
OIL SEAL
Price unavailable
35
Required: 1
COLLAR, DISTANCE 1
Price unavailable
36
Required: 1
SHEAVE, SECONDARY FIXED
Price unavailable
37
Required: 1
BOSS
Price unavailable
38
Required: 1
SECONDARY SLIDING SHEAVE
Price unavailable
39
Required: 2
OIL SEAL
Price unavailable
40
Required: 2
O-RING
Price unavailable
41
Required: 3
PIN, GUIDE
Price unavailable
42
Required: 1
SPRING SEAT COMP.
Price unavailable
43
Required: 1
WASHER
Price unavailable
44
Required: 1
SPRING, COMPRESSION
Price unavailable
45
Required: 1
SEAT,SPRING
Price unavailable
46
Yamaha Motors
S -type Circlip93410-32075-00
Required: 1
CIRCLIP
Supersedes: 99009-32400-00
In stock
5+ in stock
$8.92
You save $1.57
47
Required: 1
SPACER
Price unavailable
48
Required: 1
NUT
Price unavailable
49
Required: 1
O-RING
Price unavailable
50
Required: 2
O-RING
Price unavailable
51
Required: 1
O-RING
Price unavailable
52
Required: 2
O-RING
Price unavailable
$1.02
You save $0.18
54
Required: 1
V-BELT
Price unavailable
55
Required: 2
BEARING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
