All diagrams for this model

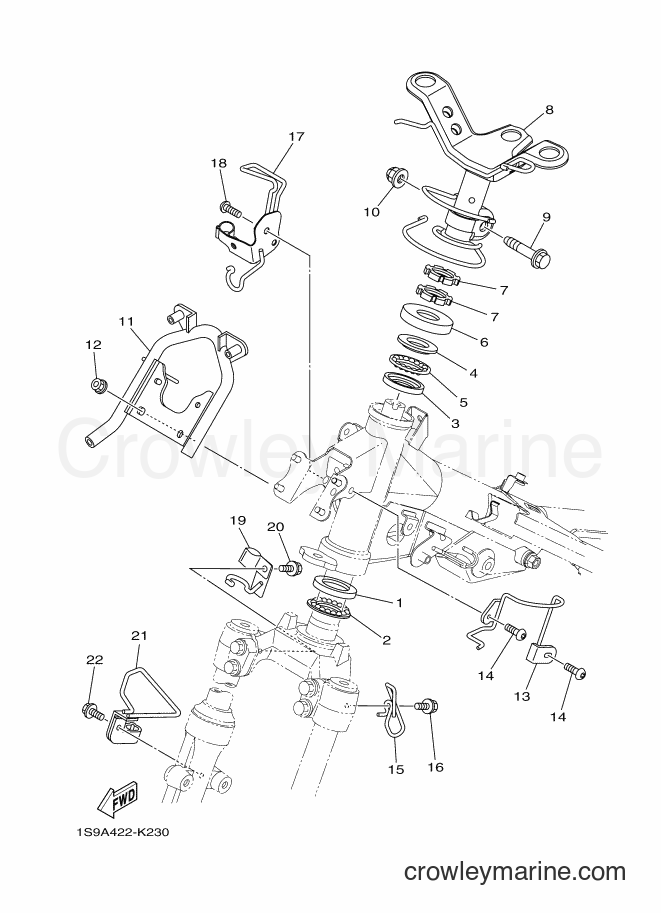

2011 Scooter T135SEC - T135SEC (1S9A) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (1S9A) [010] - STEERING
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
8
Required: 1
BRACKET, HANDLE
Price unavailable
Washer Based Bolt
9
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
NUT, SELF-LOCKING
Price unavailable
11
Required: 1
STAY
Price unavailable
Flange Nut
12
Yamaha Motors
Flange Nut95707-06500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
13
Required: 1
HOLDER, CABLE
Price unavailable
SCREW (4JY)
14
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
15
Required: 1
GUIDE, CABLE
Price unavailable
Bolt with Washer
16
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
Screw (3GG)
18
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 3
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
19
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
21
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
