2011 Scooter T115SE - T115SE (31B3) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

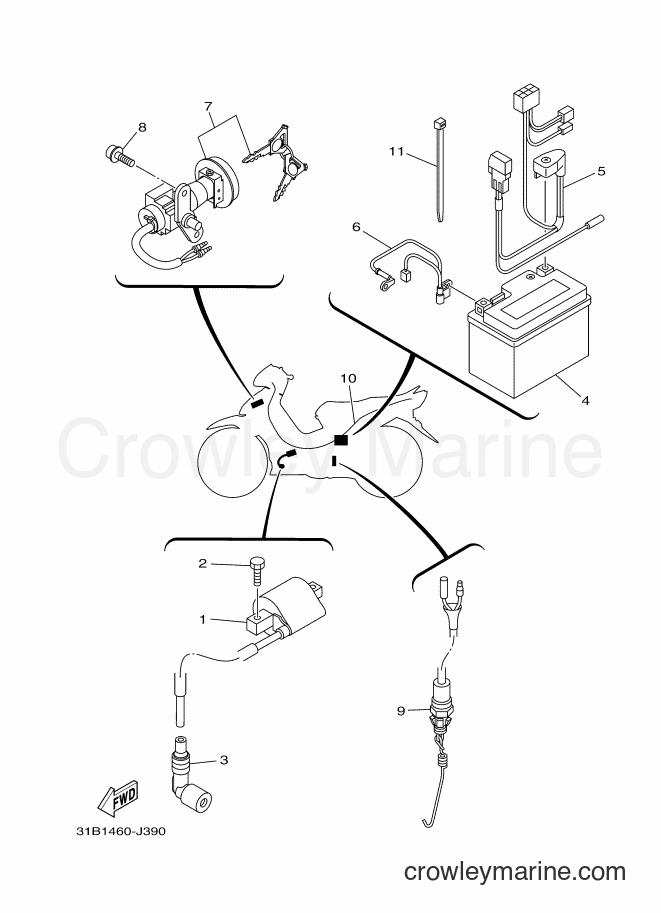

Yamaha Motors T115SE (31B3) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
97017-06016-00
2
Yamaha Motors
97017-06016-0097027-06016-00
Required: 2
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
BATTERY ASSY (YTZ5S MF YUASA)
Price unavailable
5
Required: 1
WIRE, PLUS LEAD
Price unavailable
6
Required: 1
WIRE, MINUS LEAD
Price unavailable
7
Required: 1
MAIN SWITCH COMP.
Price unavailable
8
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
9
Required: 1
STOP SWITCH ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
Band
11
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
