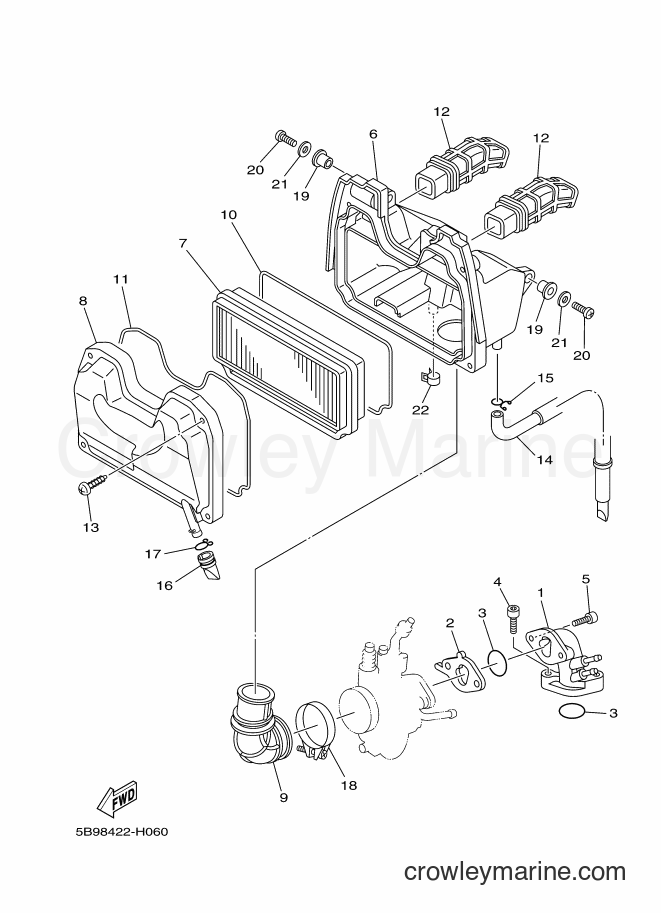

2011 Scooter T110SE - T110SE (5B9C) [010] INTAKE diagram
![Yamaha Motors T110SE (5B9C) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/LVMLhXh3.png)
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Required: 2
O-RING
Price unavailable
-50%
In stock
Only 1 remaining
$1.33
You save $1.33
-50%
In stock
Only 1 remaining
$1.33
You save $1.33
6
Required: 1
CASE, AIR CLEANER 1
Price unavailable
7
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
8
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
10
Required: 1
SEAL
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 2
PIPE, SUCTION 1
Price unavailable
13
Required: 4
SCREW, TAPPING
Price unavailable
14
Required: 1
PIPE, DRAIN
Price unavailable
$3.44
You save $0.61
16
Required: 1
PIPE, DRAIN 2
Price unavailable
17
Required: 1
CLIP
Price unavailable
18
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-43053-00
$18.69
You save $3.30
$8.92
You save $1.57
20
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$3.60
You save $-1.25
21
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
22
Required: 1
CLIP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
