All diagrams for this model

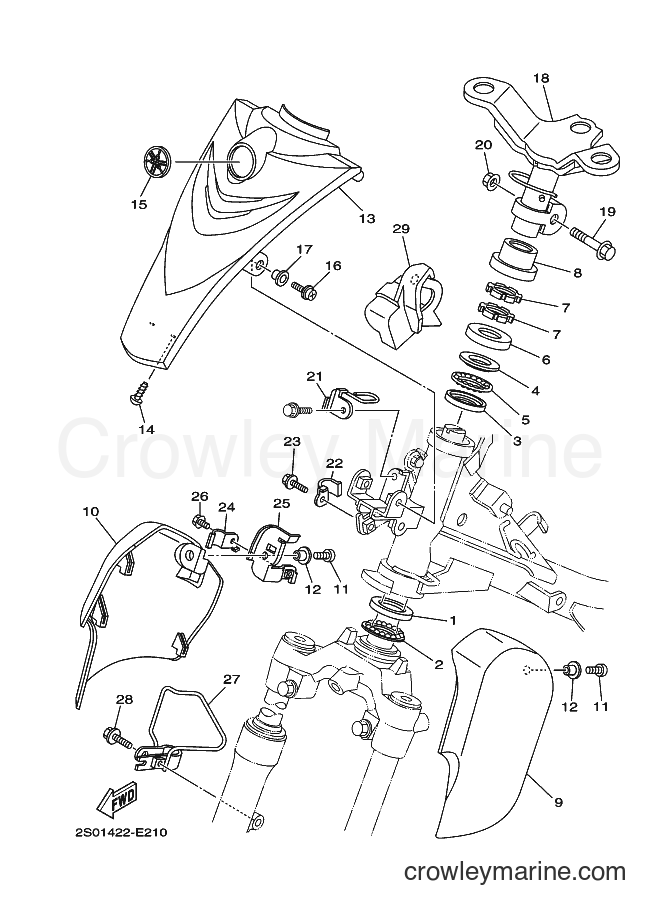

2011 Scooter T110SE - T110SE (5B9C) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SE (5B9C) [010] - STEERING 2
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
8
Required: 1
COVER, BALL RACE 1
Price unavailable
9
Required: 1
COVER, OUTER 1
Price unavailable
10
Required: 1
COVER, OUTER 2
Price unavailable
Washer Based Bolt
11
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
12
Yamaha Motors
COLLAR90387-06857-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
13
Required: 1
PANEL, FRONT
Price unavailable
Truss Screw
14
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 1
EMBLEM, 1
Price unavailable
16
Required: 2
SCREW, WITH WASHER
Price unavailable
COLLAR
17
Yamaha Motors
COLLAR90387-062M9-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
18
Required: 1
BRACKET, HANDLE
Price unavailable
Washer Based Bolt
19
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
20
Required: 1
NUT, SELF-LOCKING
Price unavailable
21
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
22
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
Flange Bolt (4MY)
23
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
24
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
25
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
Flange Bolt (4MY)
26
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
27
Required: 1
GUIDE, CABLE
Price unavailable
29
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
