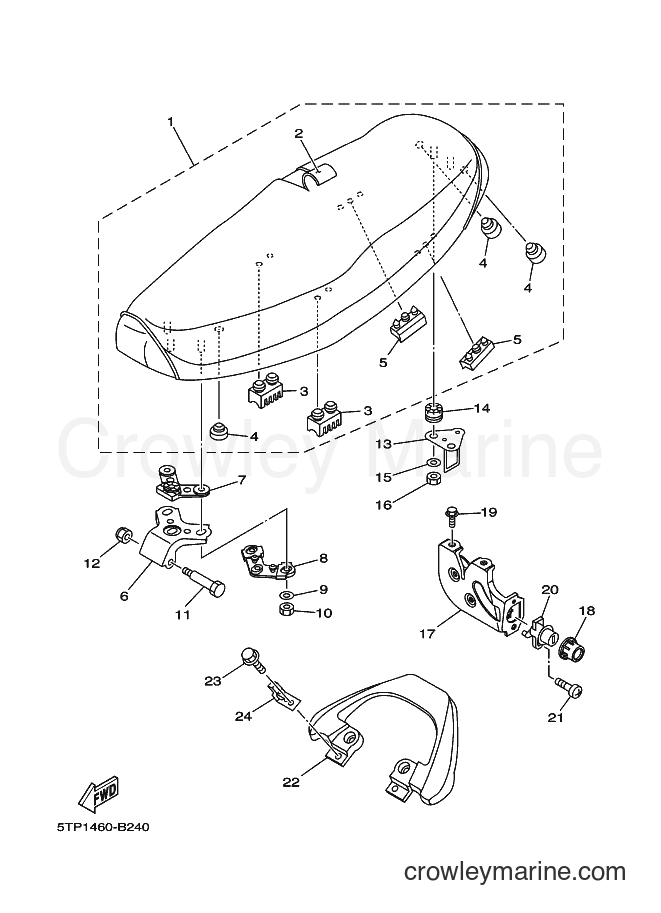

2011 Scooter T110SE - T110SE (5B9C) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SE (5B9C) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 2
. DAMPER, SEAT
Price unavailable
4
Required: 3
. PAD, SEAT
Price unavailable
5
Required: 2
. DAMPER, SEAT
Price unavailable
6
Required: 1
HINGE, SEAT
Price unavailable
7
Required: 1
DAMPER, SEAT
Price unavailable
8
Required: 1
PAD, SEAT 2
Price unavailable
Plain Washer
9
Yamaha Motors
Plain Washer90201-06086-00
Required: 3
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Nut
10
Yamaha Motors
Nut95317-06600-00
Required: 3
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
11
Required: 1
BOLT
Price unavailable
NUT
12
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$3.60
You save $-0.70
More details
13
Required: 1
BRACKET, SEAT
Price unavailable
14
Required: 2
GROMMET
Price unavailable
Plain Washer
15
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Nut
16
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
17
Required: 1
SEAT LOCK ASSY
Price unavailable
18
Required: 1
COVER
Price unavailable
20
Required: 1
ROTOR ASSY
Price unavailable
Pan Head Screw
21
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
22
Required: 1
HANDLE, SEAT
Price unavailable
24
Required: 2
HANGER, HELMET
Price unavailable
