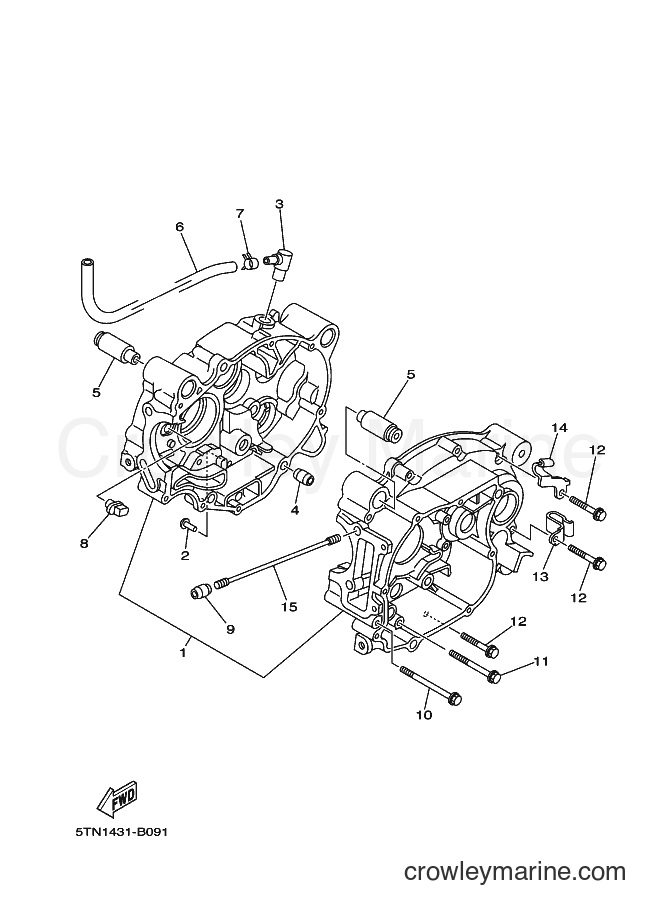

2011 Scooter T110SE - T110SE (5B9C) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SE (5B9C) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
HOOK, SPRING
Price unavailable
3
Required: 1
BREATHER
Price unavailable
4
Required: 2
PIN, DOWEL
Price unavailable
5
Required: 2
DAMPER 1
Price unavailable
6
Required: 1
PIPE, BREATHER 1
Price unavailable
7
Required: 1
CLIP
Price unavailable
8
Required: 1
NOZZLE 3
Price unavailable
9
Required: 2
PIN, DOWEL
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06080-00
Required: 1
BOLT, FLANGE
Supersedes: 9502L-06080-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
11
Required: 3
BOLT, FLANGE
Price unavailable
12
Required: 5
BOLT, FLANGE
Price unavailable
Clamp
13
Yamaha Motors
Clamp90465-10833-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
Clamp
14
Yamaha Motors
Clamp90462-10801-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Stud Bolt
15
Yamaha Motors
Stud Bolt90116-08807-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
