All diagrams for this model

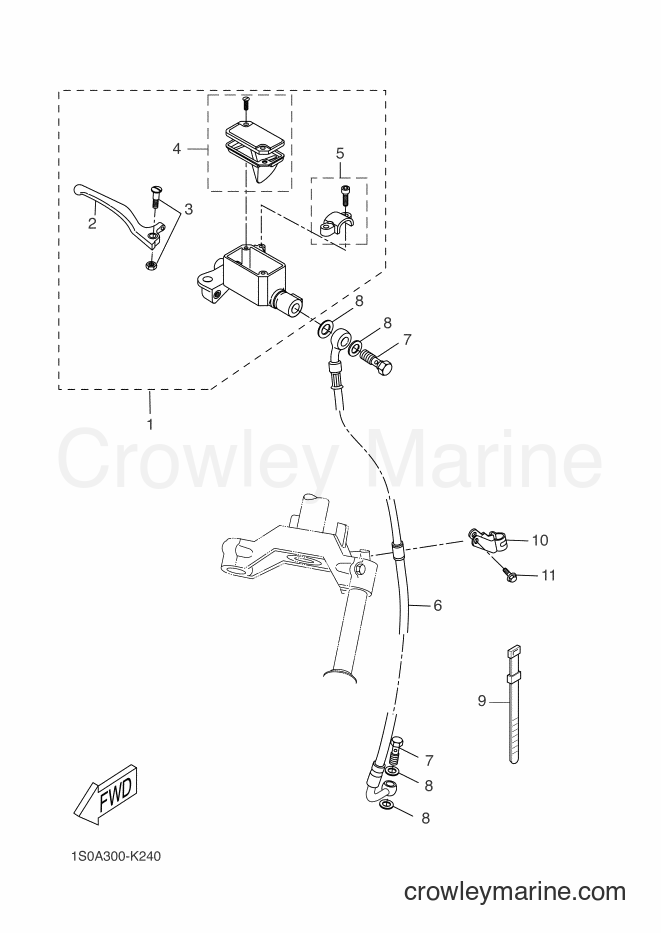

2011 Scooter EW50N - EW50N (1S0A) [050] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EW50N (1S0A) [050] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. LEVER 2
Price unavailable
3
Required: 1
. BOLT, LEVER
Price unavailable
4
Required: 1
. CAP, RESERVOIR
Price unavailable
5
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
6
Required: 1
HOSE, BRAKE 1
Price unavailable
7
Required: 2
BOLT, UNION
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Switch Cord Band
9
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
10
Required: 1
COVER, HOSE
Price unavailable
11
Required: 1
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
