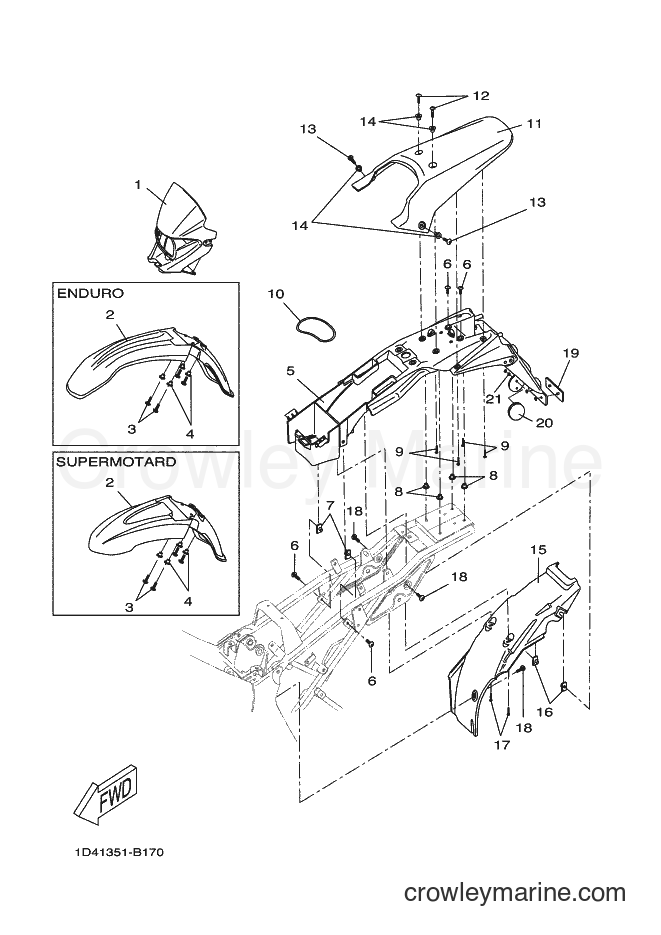

2011 Scooter DT50RSM - DT50RSM (14PC) [010] FENDER diagram
![Yamaha Motors DT50RSM (14PC) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/DAQECw7P.png)
1
Required: 1
COVER, HEADLIGHT
Price unavailable
2
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FENDER, FRONT
Price unavailable
3
Required: 4
BOLT
Price unavailable
4
Required: 4
COLLAR 1
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
6
Required: 4
BOLT 1
Price unavailable
7
Required: 2
NUT
Price unavailable
8
Required: 4
COLLAR
Price unavailable
9
Required: 4
SCREW
Price unavailable
10
Required: 1
BAND, TOOL
Price unavailable
11
Required: 1
COVER, REAR FENDER
Price unavailable
12
Required: 2
BOLT
Price unavailable
13
Required: 2
BOLT 1
Price unavailable
14
Required: 4
COLLAR
Price unavailable
15
Required: 1
PLATE, FLAP FITTING 2
Price unavailable
16
Required: 2
NUT
Price unavailable
17
Required: 2
BOLT 1
Price unavailable
18
Required: 3
BOLT, SIDE COVER
Price unavailable
19
Required: 1
REFLECTOR
Price unavailable
20
Required: 2
REFLECTOR
Price unavailable
21
Required: 2
NUT, SPECIAL
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
