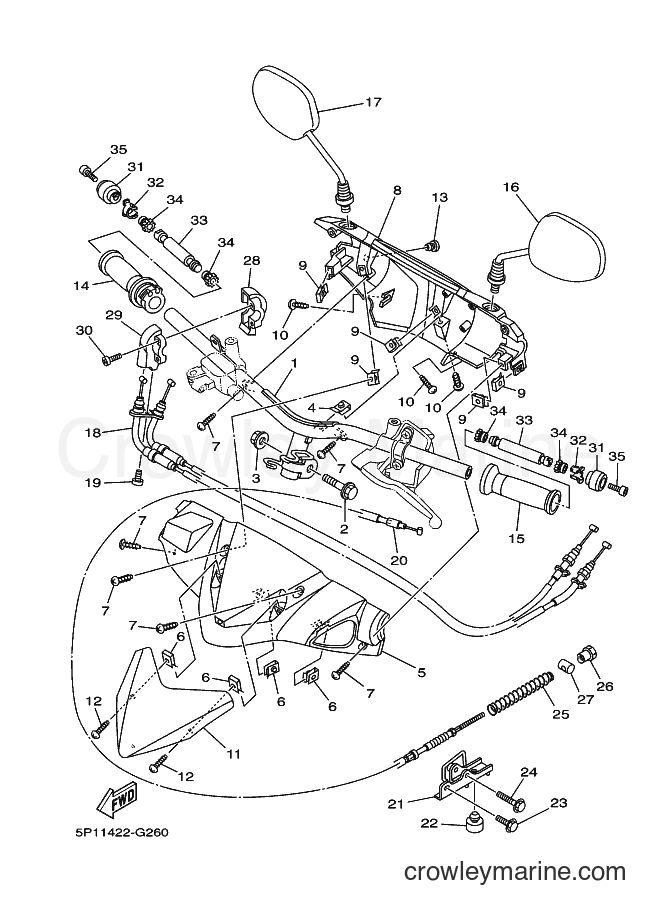

2011 Scooter AT135C - AT135C (5P17) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AT135C (5P17) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/dG5zSBFo.png)
1
Required: 1
HANDLE COMP.
Price unavailable
$8.07
You save $1.42
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
NUT, SPRING
Price unavailable
5
Required: 1
COVER,HAND,UPPER 1
Price unavailable
5
Required: 1
COVER,HAND,UPPER 1
Price unavailable
6
Required: 4
NUT, SPRING
Price unavailable
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
8
Required: 1
COVER,HAND,UPPER 2
Price unavailable
8
Required: 1
COVER,HAND,UPPER 2
Price unavailable
9
Required: 5
NUT, SPRING
Price unavailable
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
11
Required: 1
VISOR
Price unavailable
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
13
Required: 1
PLUG, BLIND
Price unavailable
14
Required: 1
GRIP ASSY
Price unavailable
15
Required: 1
GRIP
Price unavailable
16
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
18
Required: 1
THROTTLE CABLE ASSY
Price unavailable
19
Yamaha Motors
BOLT92017-05016-00
Required: 1
BOLT, BUTTON HEAD
$7.22
You save $1.27
20
Required: 1
CABLE, BRAKE
Price unavailable
21
Required: 1
HOLDER, WIRE
Price unavailable
22
Required: 1
STOPPER
Price unavailable
23
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$3.31
You save $-0.51
24
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06030-00
$3.95
You save $0.70
25
Yamaha Motors
Compression Spring90501-16801-00
Required: 1
SPRING, COMPRESSION
$2.00
You save $0.35
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
28
Required: 1
CAP, GRIP UPPER
Price unavailable
29
Required: 1
CAP, GRIP UNDER
Price unavailable
30
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
31
Required: 2
END, GRIP
Price unavailable
32
Required: 2
STOPPER
Price unavailable
33
Required: 2
WEIGHT
Price unavailable
34
Required: 4
DAMPER, LOCATING 1
Price unavailable
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
