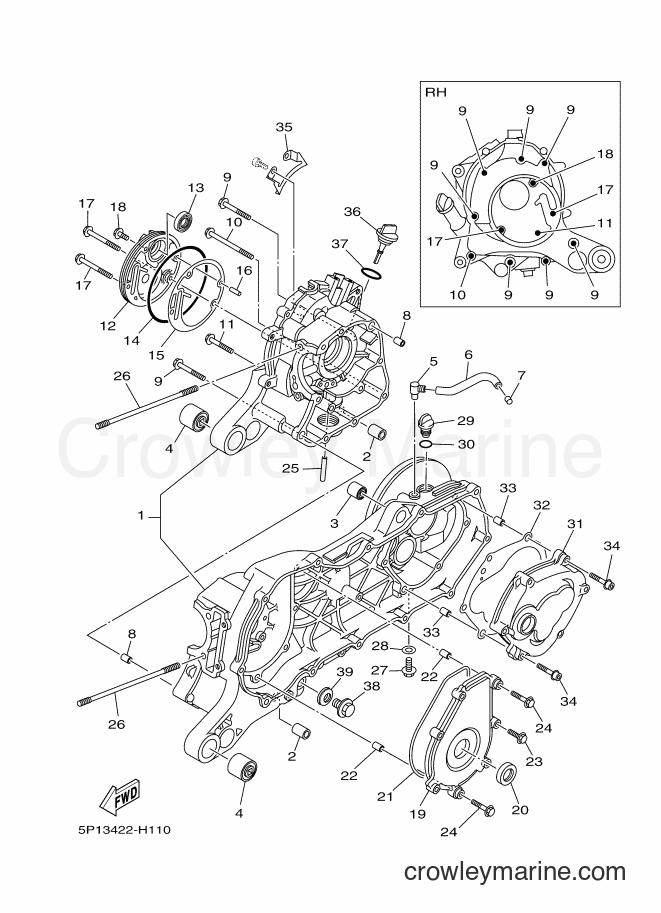

2011 Scooter AT135C - AT135C (5P18) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135C (5P18) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 2
BUSH
Price unavailable
3
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
4
Required: 2
BUSH 1
Price unavailable
5
Required: 1
BREATHER
Price unavailable
6
Required: 1
PIPE, BREATHER
Price unavailable
7
Required: 1
ELEMENT 2
Price unavailable
8
Required: 2
PIN, DOWEL
Price unavailable
Small Bolt Flange
9
Yamaha Motors
Small Bolt Flange95027-06060-00
Required: 7
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
10
Required: 1
BOLT, FLANGE
Price unavailable
Small Flange Bolt
11
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
12
Required: 1
COVER, CAP
Price unavailable
13
Required: 1
OIL SEAL
Price unavailable
14
Required: 1
O-RING
Price unavailable
15
Required: 1
GASKET
Price unavailable
16
Required: 1
PIN, DOWEL
Price unavailable
Small Bolt Flange
17
Yamaha Motors
Small Bolt Flange95027-06070-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
Washer Based Bolt
18
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
19
Required: 1
COVER 2
Price unavailable
20
Required: 1
OIL SEAL
Price unavailable
21
Required: 1
O-RING
Price unavailable
22
Required: 2
PIN, DOWEL
Price unavailable
Small Bolt Flange
24
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
25
Required: 1
PIPE, OIL 1
Price unavailable
26
Required: 4
BOLT, STUD 1
Price unavailable
Flange Bolt
27
Yamaha Motors
Flange Bolt95817-08016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Tank Cap Gasket
28
Yamaha Motors
Tank Cap Gasket90430-08119-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
29
Required: 1
PLUG, OIL
Price unavailable
30
Required: 1
O-RING
Price unavailable
31
Required: 1
COVER, CRANKCASE 2
Price unavailable
32
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
33
Required: 2
PIN, DOWEL
Price unavailable
HEXAGON SOCKET BOLT
34
Yamaha Motors
HEXAGON SOCKET BOLT90110-06813-00
Required: 6
BOLT, HEXAGON WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
35
Required: 1
PLATE
Price unavailable
36
Required: 1
PLUG, OIL LEVEL
Price unavailable
37
Required: 1
O-RING
Price unavailable
38
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
Gasket
39
Yamaha Motors
Gasket812-11198-00-00
Required: 1
GASKET
Supersedes: 4YS-E1198-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
