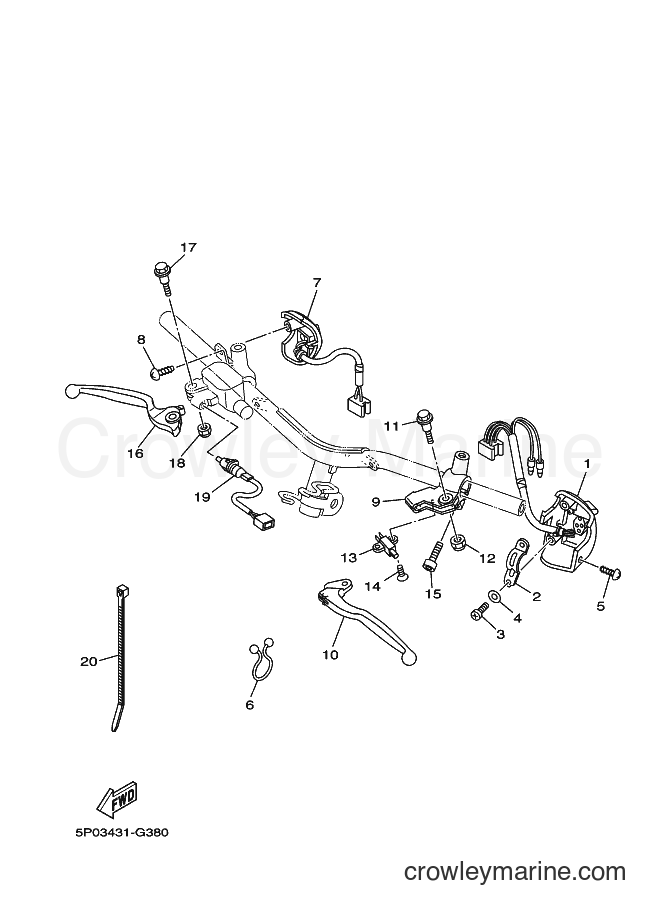

2011 Scooter AT135 - AT135 (5P07) [010] HANDLE SWITCH & LEVER diagram
![Yamaha Motors AT135 (5P07) [010] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/vZY8OMR7.png)
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
BRACKET 1
Price unavailable
3
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
4
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$1.98
You save $-0.98
5
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
$0.98
You save $0.17
7
Required: 1
SWITCH, HANDLE 1
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
HOLDER, LEVER 1
Price unavailable
10
Required: 1
LEVER 1 (BLACK)
Price unavailable
11
Required: 1
BOLT
Price unavailable
12
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
You save $-0.70
13
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
14
Required: 1
SCREW, FLAT HEAD
Price unavailable
$4.23
You save $-1.48
16
Required: 1
LEVER 2 (BLACK)
Price unavailable
$5.52
You save $0.97
18
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
You save $-0.70
19
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
20
Required: 1
CLAMP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
