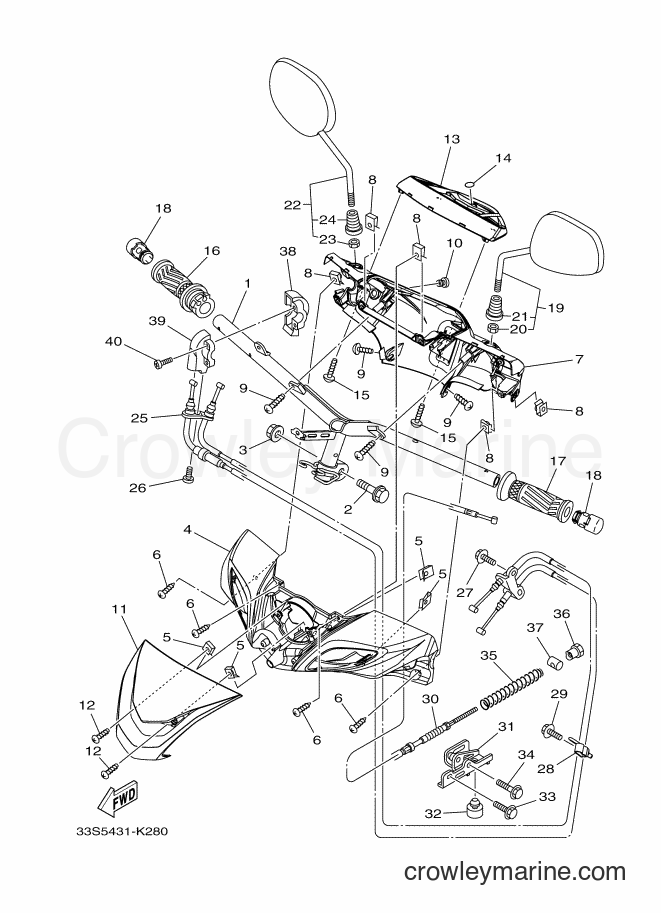

2011 Scooter AL125 - AL125 (33S7) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AL125 (33S7) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/s9X7nOCR.png)
1
Required: 1
HANDLE COMP.
Price unavailable
$8.07
You save $1.42
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER,HAND,UPPER 1(1201,VPBC6)
Price unavailable
4
Required: 1
COVER,HAND,UPPER 1(0903,SMX)
Price unavailable
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
7
Required: 1
COVER,HAND,UPPER 2(0386,LRYS1)
Price unavailable
7
Required: 1
COVER,HAND,UPPER 2(0033,YB)
Price unavailable
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
10
Required: 1
PLUG, BLIND
Price unavailable
11
Required: 1
VISOR (1088,MBNM1)
Price unavailable
11
Required: 1
VISOR (1124,WM6)
Price unavailable
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
13
Required: 1
COVER, METER (0791,S3)
Price unavailable
13
Required: 1
COVER, METER (0903,SMX)
Price unavailable
14
Required: 1
TUNING FORK MARK
Price unavailable
15
Yamaha Motors
Tapping Screw90167-05078-00
Required: 4
SCREW, TAPPING
Supersedes: 97707-50020-00
$8.07
You save $1.42
16
Required: 1
GRIP ASSY
Price unavailable
17
Required: 1
GRIP
Price unavailable
18
Required: 2
END, GRIP
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
20
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
21
Required: 1
. BOOT 1
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
23
Required: 1
. NUT
Price unavailable
24
Required: 1
. BOOT 1
Price unavailable
25
Required: 1
THROTTLE CABLE ASSY
Price unavailable
26
Yamaha Motors
BOLT92017-05016-00
Required: 1
BOLT, BUTTON HEAD
$7.22
You save $1.27
$3.02
You save $0.53
28
Required: 1
GUIDE, CABLE
Price unavailable
$3.57
You save $0.63
30
Required: 1
CABLE, BRAKE
Price unavailable
31
Required: 1
HOLDER, WIRE
Price unavailable
32
Required: 1
STOPPER
Price unavailable
33
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
34
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06030-00
$3.95
You save $0.70
35
Yamaha Motors
Compression Spring90501-16801-00
Required: 1
SPRING, COMPRESSION
$2.00
You save $0.35
$8.07
You save $1.42
In stock
Only 4 remaining
$8.07
You save $1.42
38
Required: 1
CAP, GRIP UPPER
Price unavailable
39
Required: 1
CAP, GRIP UNDER
Price unavailable
40
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
