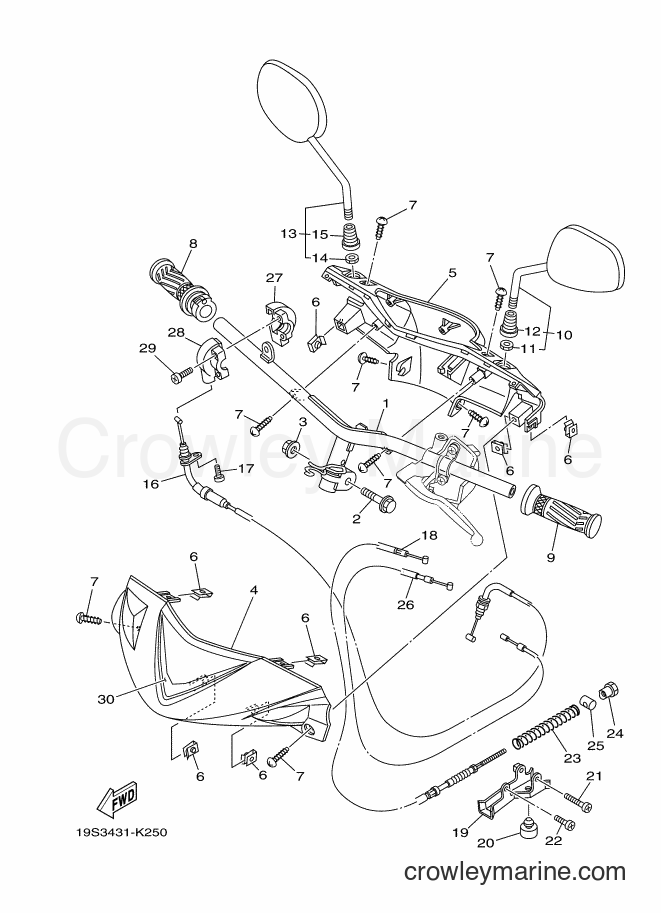

2011 Scooter AL115S - AL115S (19S3) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AL115S (19S3) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/mBxUTjUw.png)
1
Required: 1
HANDLE COMP.
Price unavailable
$8.07
You save $1.42
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER,HAND,UPPER 1(1124,WM6)
Price unavailable
5
Required: 1
COVER,HAND,UPPER2(00TR,RTR)
Price unavailable
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 7
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Required: 1
GRIP ASSY
Price unavailable
9
Required: 1
GRIP
Price unavailable
10
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
11
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
12
Required: 1
. BOOT 1
Price unavailable
13
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
14
Required: 1
. NUT
Price unavailable
15
Required: 1
. BOOT 1
Price unavailable
16
Required: 1
CABLE, THROTTLE 1
Price unavailable
17
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
18
Required: 1
WIRE,BRAKE 2
Price unavailable
19
Required: 1
HOLDER, WIRE
Price unavailable
20
Required: 1
STOPPER
Price unavailable
21
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
$2.74
You save $0.48
22
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 1
SCREW, PAN HEAD
In stock
Only 1 remaining
$7.59
You save $1.90
23
Required: 1
SPRING, COMPRESSION
Price unavailable
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
26
Required: 1
CABLE, STARTER 1
Price unavailable
27
Required: 1
CAP, GRIP UPPER
Price unavailable
28
Required: 1
CAP, GRIP UNDER
Price unavailable
29
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
30
Required: 1
GRAPHIC 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
