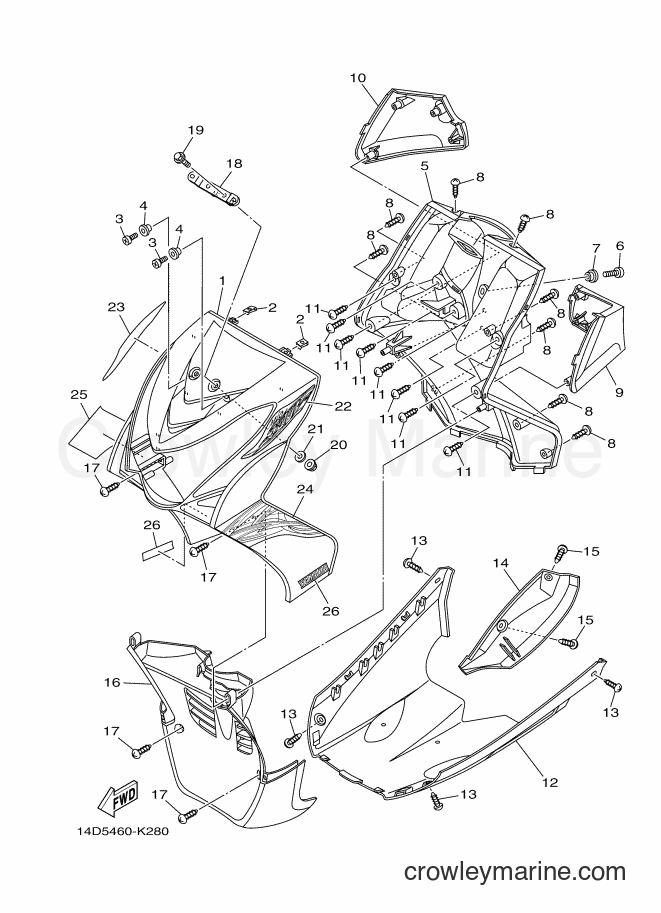

2011 Scooter AL115C - AL115C (14D5) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (14D5) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
3
Required: 2
SCREW, BIND
Price unavailable
4
Required: 2
COLLAR
Price unavailable
5
Required: 1
LEG SHIELD 2
Price unavailable
6
Required: 1
SCREW, BIND
Price unavailable
7
Required: 1
COLLAR
Price unavailable
9
Required: 1
PANEL, INNER 1
Price unavailable
10
Required: 1
PANEL, INNER 2
Price unavailable
12
Required: 1
COVER, UNDER
Price unavailable
14
Required: 1
COVER, UNDER 2
Price unavailable
16
Required: 1
FENDER, INNER
Price unavailable
18
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
Flange Bolt
19
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Flange Nut
20
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Plate Washer
21
Yamaha Motors
Plate Washer90201-06057-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
GRAPHIC, 13
Price unavailable
23
Required: 1
GRAPHIC, 14
Price unavailable
24
Required: 1
GRAPHIC, 15
Price unavailable
25
Required: 1
GRAPHIC, 16
Price unavailable
26
Required: 2
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
