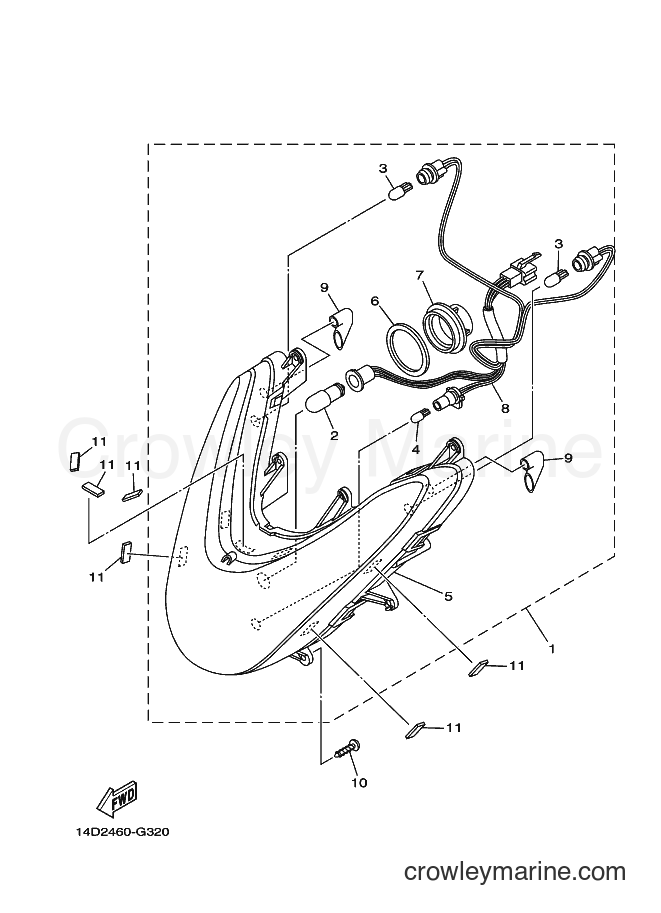

2011 Scooter AL115C - AL115C (14D4) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (14D4) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. BULB (12V-32/32W)
Price unavailable
3
Required: 2
. BULB (12V-10W) AMBER
Price unavailable
4
Required: 1
. BULB, PILOT LIGHT (12V-3.4W)
Price unavailable
5
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
6
Required: 1
. O-RING 3
Price unavailable
7
Required: 1
. COVER, SOCKET
Price unavailable
8
Required: 1
. CORD ASSY
Price unavailable
9
Required: 2
. CAP
Price unavailable
11
Required: 6
DAMPER 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
