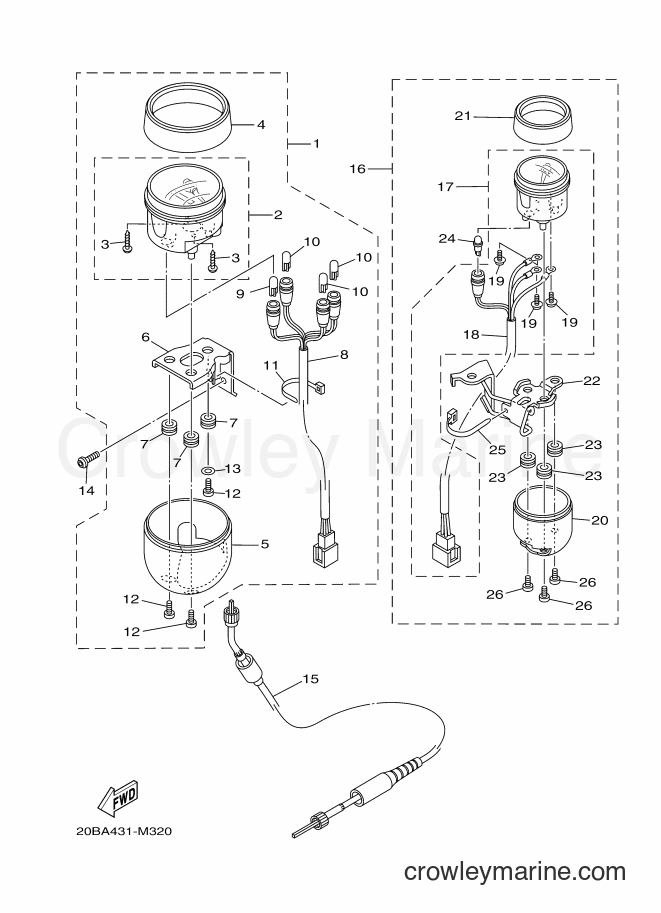

2011 Scooter AF115S - AF115S (20B5) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20B5) [010] - METER
Change View:
1
Required: 1
SPEEDO. ASSY (DRMK/SMX)
Price unavailable
1
Required: 1
SPEEDO. ASSY (VDOM1/NW)
Price unavailable
1
Required: 1
SPEEDO. ASSY (LGM6/WM6)
Price unavailable
1
Required: 1
SPEEDO. ASSY (CR)
Price unavailable
2
Required: 1
. SPEEDO. COMP.
Price unavailable
Tapping Screw
3
Yamaha Motors
Tapping Screw90167-04021-00
Required: 2
. . SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
4
Required: 1
. CASE, UPPER 2 (DRMK)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (VDOM1)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (LGM6)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (DPM1)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (MC1)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (CR)
Price unavailable
4
Required: 1
. CASE, UPPER 2 (DNGM3)
Price unavailable
5
Required: 1
. CASE, SPEEDO. LOWER (WM6)
Price unavailable
5
Required: 1
. CASE, SPEEDO. LOWER (SMX)
Price unavailable
5
Required: 1
. CASE, SPEEDO. LOWER (NW)
Price unavailable
5
Required: 1
. CASE, SPEEDO. LOWER (CR)
Price unavailable
6
Required: 1
. BRACKET, METER 2
Price unavailable
7
Required: 3
. DAMPER
Price unavailable
8
Required: 1
. SOCKET CORD ASSY
Price unavailable
9
Required: 1
. BULB (T-6.5 14V-1.4W)
Price unavailable
10
Required: 3
. BULB (T-6.5 12V-1.7W)
Price unavailable
11
Required: 1
. CLAMP
Price unavailable
12
Required: 3
. SCREW
Price unavailable
13
Required: 1
. WASHER, SPECIAL
Price unavailable
14
Required: 2
SCREW
Price unavailable
15
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
16
Required: 1
FUEL METER ASSY (CR)
Price unavailable
16
Required: 1
FUEL METER ASSY (LGM6/WM6)
Price unavailable
16
Required: 1
FUEL METER ASSY (DRMK/SMX)
Price unavailable
16
Required: 1
FUEL METER ASSY (VDOM1/NW)
Price unavailable
17
Required: 1
. METER COMP.
Price unavailable
18
Required: 1
. . SOCKET ASSY.
Price unavailable
Screw with Washer
19
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. . SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
20
Required: 1
. CASE, UNDER (SMX)
Price unavailable
20
Required: 1
. CASE, UNDER (NW)
Price unavailable
20
Required: 1
. CASE, UNDER (CR)
Price unavailable
20
Required: 1
. CASE, UNDER (WM6)
Price unavailable
21
Required: 1
. CASE, UPPER (DNGM3)
Price unavailable
21
Required: 1
. CASE, UPPER (DRMK)
Price unavailable
21
Required: 1
. CASE, UPPER (MC1)
Price unavailable
21
Required: 1
. CASE, UPPER (VDOM1)
Price unavailable
21
Required: 1
. CASE, UPPER (DPM1)
Price unavailable
21
Required: 1
. CASE, UPPER (CR)
Price unavailable
21
Required: 1
. CASE, UPPER (LGM6)
Price unavailable
22
Required: 1
. BRACKET, METER
Price unavailable
23
Required: 3
. DAMPER
Price unavailable
24
Required: 3
. BULB, LED
Price unavailable
25
Required: 1
. CLAMP
Price unavailable
26
Required: 3
. SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
