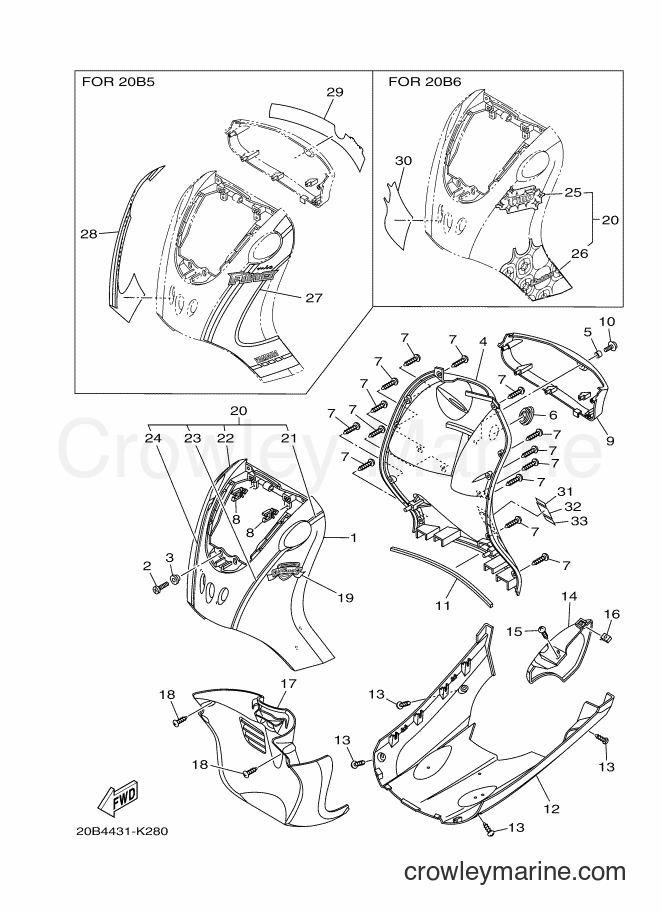

2011 Scooter AF115S - AF115S (20B6) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20B6) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1 (0903/001A)
Price unavailable
1
Required: 1
LEG SHIELD 1 (1124,WM6)
Price unavailable
1
Required: 1
LEG SHIELD 1 (0858/001A)
Price unavailable
Socket Bolt
2
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 2
COLLAR
Price unavailable
4
Required: 1
LEG SHIELD 2 (0858,VDOM1)
Price unavailable
4
Required: 1
LEG SHIELD 2 (001A,NW)
Price unavailable
4
Required: 1
LEG SHIELD 2 (0918,DRMK)
Price unavailable
5
Required: 1
COLLAR
Price unavailable
6
Required: 1
CAP
Price unavailable
8
Required: 2
CLAMP
Price unavailable
9
Required: 1
PANEL, INNER 1 (001A,NW)
Price unavailable
9
Required: 1
PANEL, INNER 1 (0903,SMX)
Price unavailable
9
Required: 1
PANEL, INNER 1 (1124,WM6)
Price unavailable
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
DAMPER 1
Price unavailable
12
Required: 1
COVER, UNDER (003E,PGD)
Price unavailable
12
Required: 1
COVER, UNDER (0033,YB)
Price unavailable
14
Required: 1
COVER, UNDER 2
Price unavailable
17
Required: 1
FENDER, INNER (0033,YB)
Price unavailable
17
Required: 1
FENDER, INNER (003E,PGD)
Price unavailable
19
Required: 1
EMBLEM
Price unavailable
20
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
20
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
21
Required: 1
. GRAPHIC, 1
Price unavailable
22
Required: 1
. GRAPHIC, 2
Price unavailable
23
Required: 1
. GRAPHIC, 3
Price unavailable
24
Required: 1
. GRAPHIC, 4
Price unavailable
25
Required: 1
. GRAPHIC, 8
Price unavailable
26
Required: 1
. GRAPHIC, 9
Price unavailable
27
Required: 1
GRAPHIC, 5
Price unavailable
28
Required: 1
GRAPHIC, 6
Price unavailable
29
Required: 1
GRAPHIC, 7
Price unavailable
30
Required: 1
GRAPHIC, 10
Price unavailable
31
Required: 1
LABEL, WARNING
Price unavailable
32
Required: 1
LABEL, CAUTION
Price unavailable
33
Required: 1
LABEL, SAFETY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
