2010 Scooter TK115C - TK115C (15C2) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

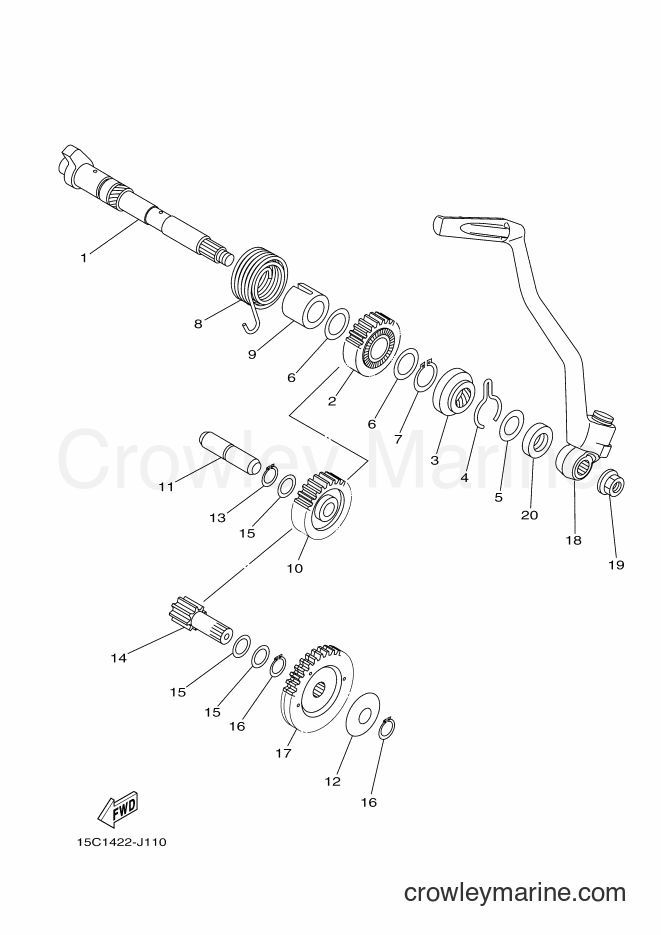

Yamaha Motors TK115C (15C2) [010] - STARTER
Change View:
1
Required: 1
AXLE, KICK
Price unavailable
2
Required: 1
GEAR, KICK
Price unavailable
3
Required: 1
WHEEL, RATCHET
Price unavailable
Clip
4
Yamaha Motors
Clip90468-23194-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
WASHER, PLATE
Price unavailable
Shim
6
Yamaha Motors
Shim296-15644-00-00
Required: 2
SHIM
Supersedes: 4WH-E5644-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
S -type Circlip
7
Yamaha Motors
S -type Circlip99009-19400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 1
SPRING, KICK
Price unavailable
9
Required: 1
SPACER
Price unavailable
10
Required: 1
GEAR, KICK IDLE 2
Price unavailable
11
Required: 1
SHAFT
Price unavailable
12
Required: 1
WASHER, CONICAL SPRING
Price unavailable
CIRCLIP 55X
13
Yamaha Motors
CIRCLIP 55X99009-13400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
14
Required: 1
GEAR, KICK PINION
Price unavailable
15
Required: 3
WASHER, PLATE
Price unavailable
CIRCLIP 55X
16
Yamaha Motors
CIRCLIP 55X99009-13400-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
17
Required: 1
IDLE GEAR ASSY
Price unavailable
18
Required: 1
KICK CRANK ASSY
Price unavailable
19
Required: 1
NUT
Price unavailable
20
Required: 1
OIL SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
